Description

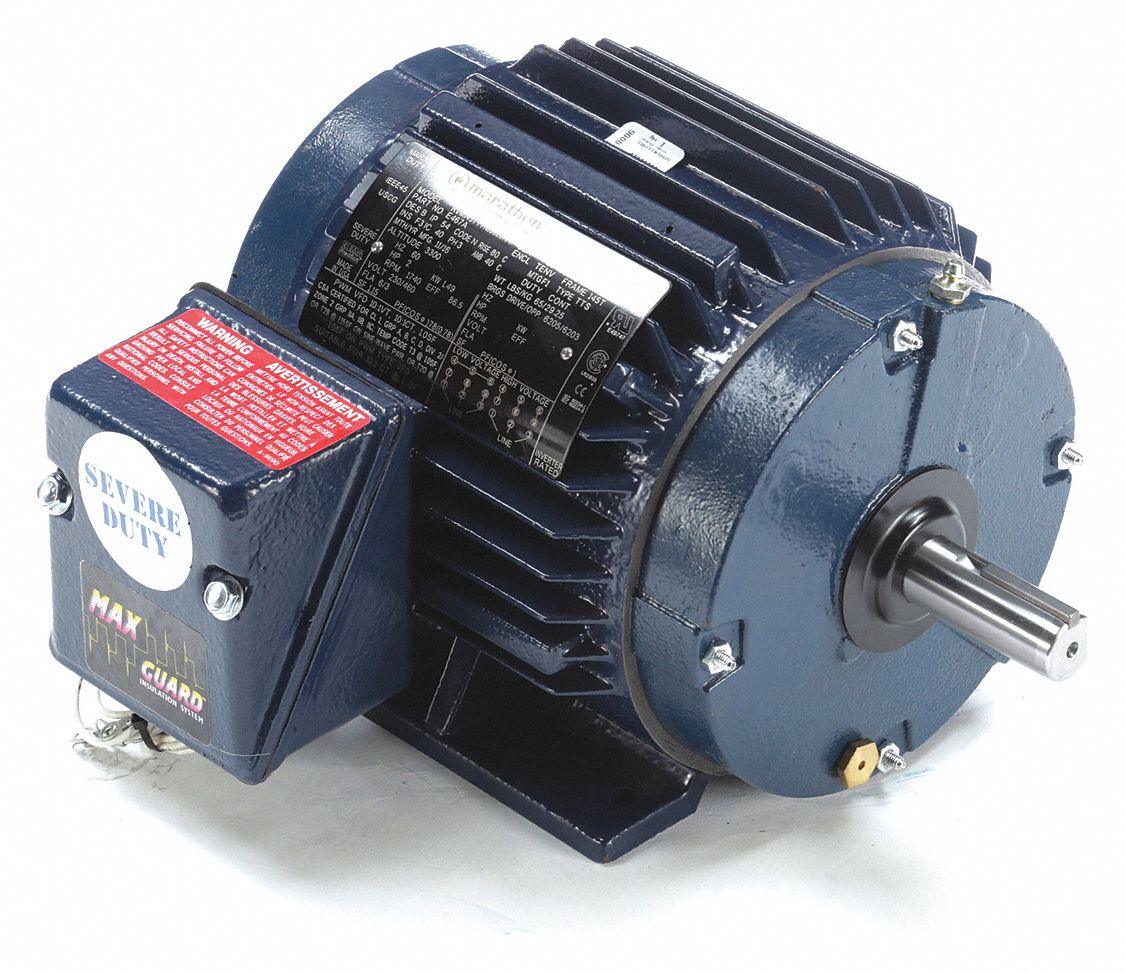

Severe Duty Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 740 No of Speeds 1 Voltage 230/460V AC Full Load Amps 6.
0/3.
0 A 145T Frame Usable @ 208V No Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F Motor Enclosure Design Totally Enclosed Nonventilated Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
