Product Overview
These blue and silver ultra-corrosion-resistant coated steel screws stand up to wet environments. They have a hex head for a secure grip with a wrench. Drive into a hole with a hammer drill or socket wrench, or use a specialized tool set (sold separately). The pull-out strength and shear strength values exceed the ultimate standards.
Blue acrylic coated screws are also known as Tapcons.
Key Features
- Corrosion-resistant coated steel material
- Hex head for secure gripping
- Designed for use in block, brick, and concrete
- Removable anchor type for easy adjustments
- Standards compliant with RoHS 3
- High pull-out strength of 150 lbs
- Shear strength rated at 180 lbs
Benefits
- Durable in wet environments for long-lasting performance
- Easy installation with the appropriate tools
- Suitable for various construction and repair projects
- Reliable and tested in 3,000 psi concrete

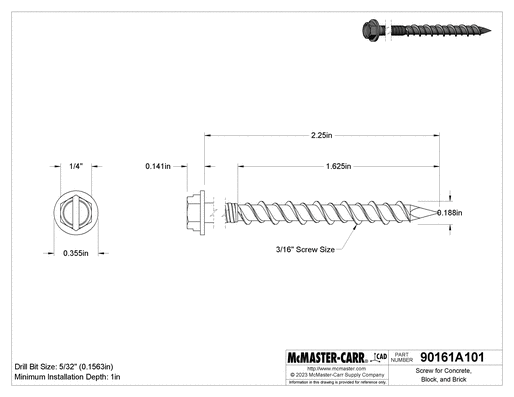

| Specification | Detail |
|---|---|
| Material | Blue Corrosion-Resistant-Coated Steel |
| Length | 2 1/4" |
| Screw Size | 3/16" |
| Screw Size Decimal Equivalent | 0.188" |
| Drill Bit Size | 5/32" |
| Drill Bit Decimal Size Equivalent | 0.1563" |
| Thread Length | 1 5/8" |
| Min. Install. Depth | 1" |
| Width | 1/4" |
| Height | 9/64" |
| Flange Diameter | 0.355" |
| Pull-Out Strength | 150 lbs |
| Shear Strength | 180 lbs |
| Tested In | 3,000 psi Concrete |
| Drive Style | Slotted/External Hex |
| Head Type | Hex |
| Thread Direction | Right Hand |
| Tip Type | Pointed |
| For Use In | Block, Brick, Concrete |
| Removable | Removable |
| Anchor Type | Tapping Screw |
| System of Measurement | Inch |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | No |
| Schedule B | 731814.0000 |
| ECCN | EAR99 |
