Description

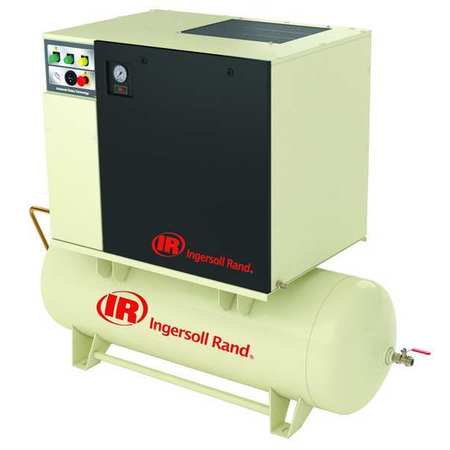

INGERSOLL-RAND UP6-15CTAS-150/120-230-3 - ROTRY SCRW AIR CMPRESR W/AIR DRYER 15 HP - ROTARY SCREW AIR COMPRESSOR W/AIR DRYER 15 HP FREE AIR CFM @ MAX PRESSURE 50 MAX PRESSURE 150 PSI VOLTAGE 230 PHASE 3 FULL LOAD AMPS 43.
2 TANK SIZE 120 GAL.
TANK TYPE HORIZONTAL(F)NPT OUTLET 3/4 IN.
DBA @ 3 FEET 69 3500 MOTOR RPM DUTY CONTINUOUS R-134A REFRIGERANT AMBIENT TEMP RANGE 33 TO 104 DEGREES F OVERALL LENGTH 75 IN.
OVERALL DEPTH 29 IN.
OVERALL HEIGHT 61 IN.
- EQUAL TO 1ZPT6
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
INGERSOLL-RAND
Manufacturer Part Number:
UP6-15CTAS-150/120-230-3
