Description

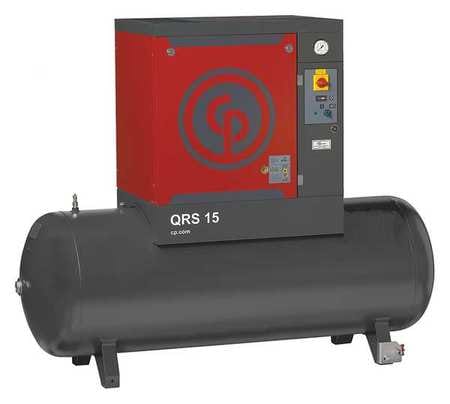

CHICAGO PNEUMATIC QRS 15 HP - ROTARY SCREW AIR COMPRESSOR 15HP 3PH - ROTARY SCREW AIR COMPRESSOR 15 HP FREE AIR CFM @ MAX PRESSURE 52 MAX PRESSURE 132 PSI VOLTAGE 208-230/460 PHASE 3 FULL LOAD AMPS 42/39.
3/19.
5 TANK SIZE 120 GAL.
TANK TYPE HORIZONTAL ASME TANK YES (F)NPT OUTLET 1/2 IN.
DBA @ 3 FEET 68 5705 MOTOR RPM DUTY CONTINUOUS AMBIENT TEMP RANGE 33 TO 104 DEGREES F OVERALL LENGTH 76 IN.
OVERALL DEPTH 25 IN.
OVERALL HEIGHT 58 IN.
- EQUAL TO 40JE48
Features
Specs
Manufacturer Name:
CHICAGO PNEUMATIC
Manufacturer Part Number:
QRS 15 HP
