Description

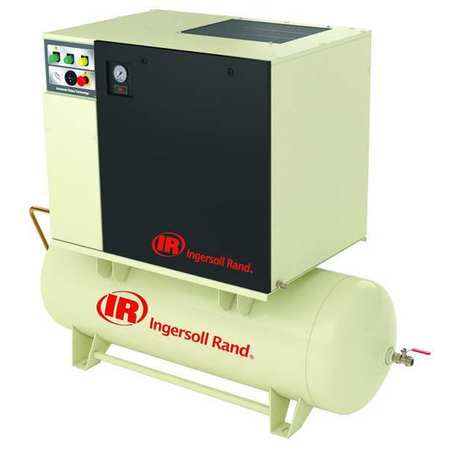

INGERSOLL-RAND UP6-15C-125/120-230-3 - ROTARY SCREW AIR COMPRESSOR 15 HP 55 CFM - ROTARY SCREW AIR COMPRESSOR 15 HP FREE AIR CFM @ MAX PRESSURE 55 MAX PRESSURE 125 PSI VOLTAGE 230 PHASE 3 FULL LOAD AMPS 41.
2 TANK SIZE 120 GAL.
TANK TYPE HORIZONTAL (F)NPT OUTLET 3/4 IN.
DBA @ 3 FEET 68 DUTY CONTINUOUS AMBIENT TEMP RANGE UP TO 104 DEGREES F OVERALL LENGTH 75 IN.
OVERALL DEPTH 29 IN.
OVERALL HEIGHT 61 IN.
- EQUAL TO 6WA83
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
INGERSOLL-RAND
Manufacturer Part Number:
UP6-15C-125/120-230-3
