Description

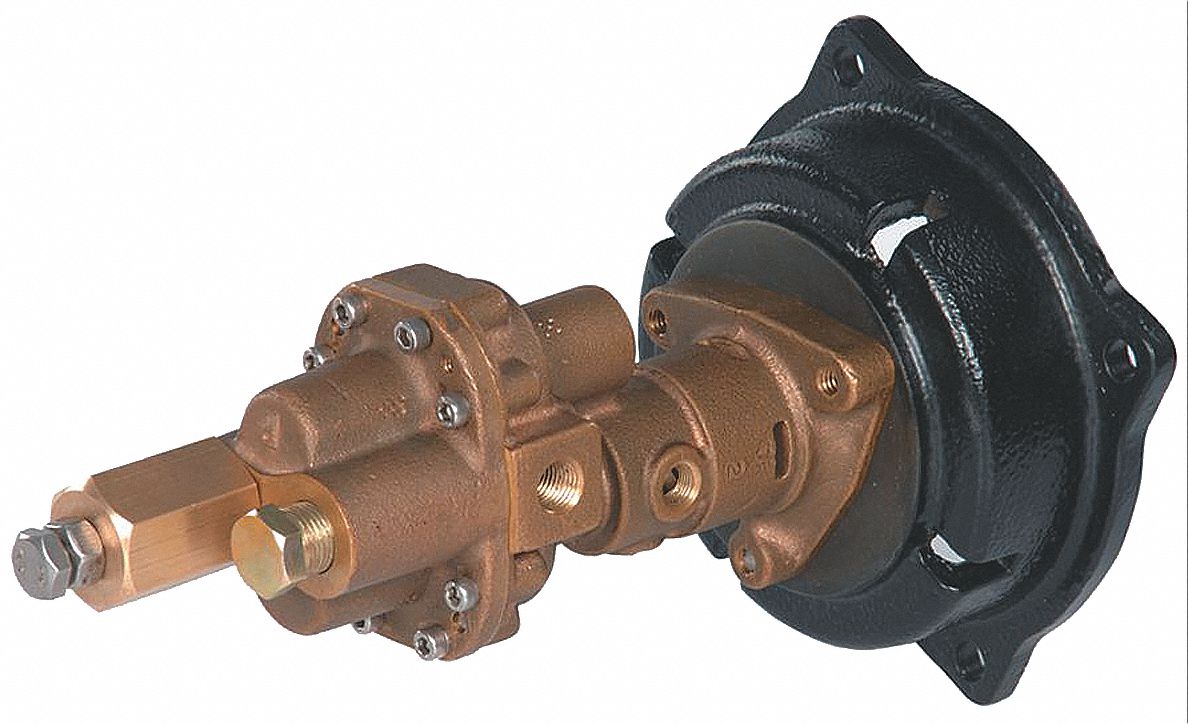

Rotary Gear Pump Head Body Material Bronze Compatible Motor Frame 56C Viscosity - Maximum 550 SUS Suction Lift - Maximum 7.
9 ft Operating Pressure - Maximum 125 psi Operating Temperature - Maximum 210 Degrees F Operating Temperature - Minimum -20 Degrees F Required Horsepower 1 1/2 hp Connection Size 3/8 in Connection Type NPT Shaft Outer Diameter 5/8 in Flow Rate @ 100 psi 6.
5 gpm Seal Type Mechanical Seal Material Buna-N Carbon Ceramic Stainless Steel Gear Design Spur- Alternate Part Numbers- 4KHC1- 4KHC1- 4KHC1
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
IN
Manufacturer Name:
4KHC1
Manufacturer Part Number:
DAYTON
