Description

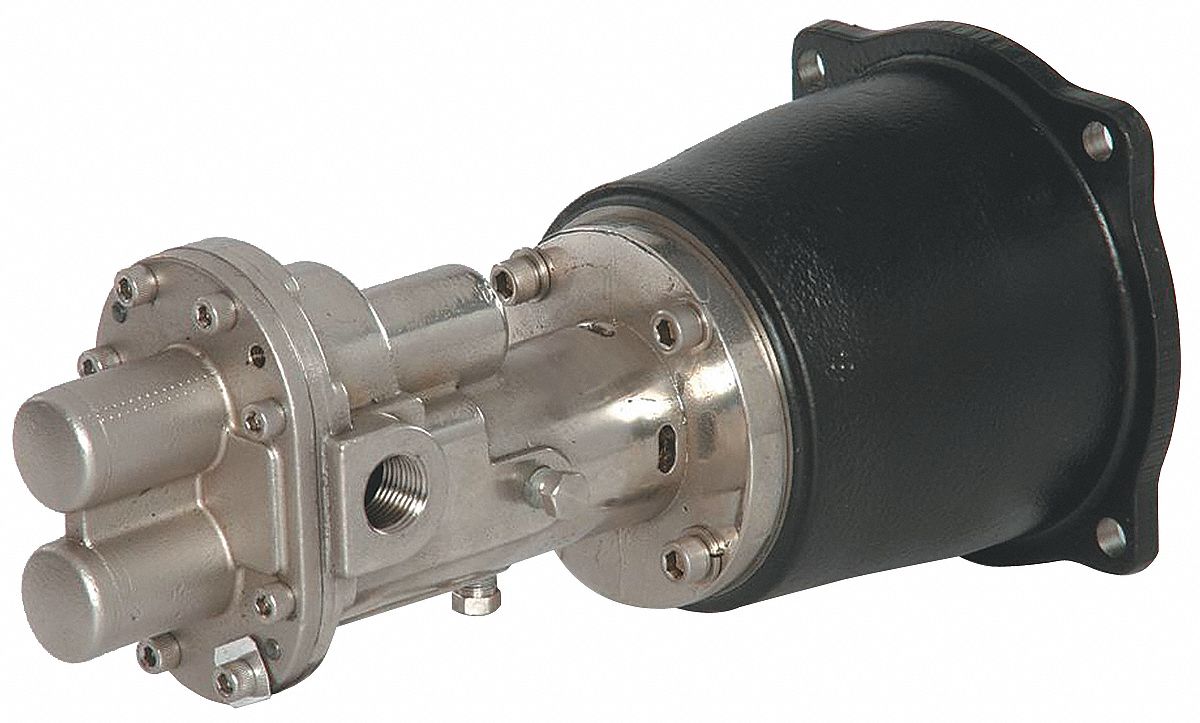

Rotary Gear Pump Head Body Material 316 Stainless Steel Compatible Motor Frame 56C Viscosity - Maximum 550 SUS Suction Lift - Maximum 3.
5 ft Operating Pressure - Maximum 125 psi Operating Temperature - Maximum 280 Degrees F Operating Temperature - Minimum 32 Degrees F Required Horsepower 1 hp Connection Size 3/8 in Connection Type NPT Shaft Outer Diameter 1/2 in Flow Rate @ 100 psi 4.
4 gpm Seal Type Mechanical Shaft Length Not Applicable- Alternate Part Numbers- 4KHN7- 4KHN7- 4KHN7
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
IN
Manufacturer Name:
4KHN7
Manufacturer Part Number:
DAYTON
