Description

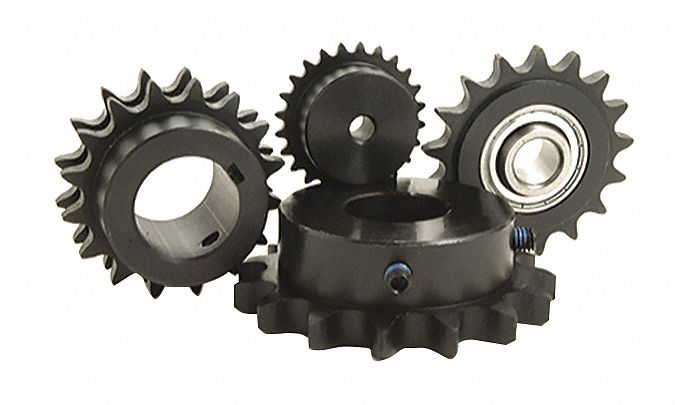

Roller Chain Sprocket Bore Diameter 1 in For Chain Pitch 1/2 in For Number of Strands Double Hub Type One Side Material Steel Maximum Bore Diameter 1 in Number of Teeth 15 Outside Diameter 2.
65 in Pitch Diameter 2.
405 in Bore Type Fixed Chain Number 40-2 Finish Black Oxide Hub Diameter 1 13/16 in Hub Projection 0.
659 in Includes Set Screws Keyway Yes Keyway Width 1/4 in Length through Bore 1 1/2 in- Alternate Part Numbers- 55WE40- D40BS15HX1- 55WE40
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
D40BS15H X 1
Manufacturer Part Number:
TRITAN
