Description

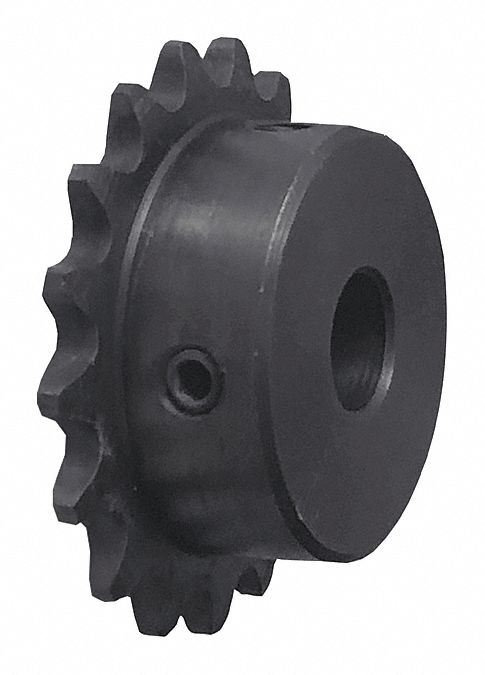

Single Strand Sprocket Bore Diameter 1/2 in For Chain Pitch 1/2 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 1/2 in Number of Teeth 15 Outside Diameter 2.
65 in Pitch Diameter 2.
405 in Bore Type Fixed Chain Number 40 Finish Black Oxide For Pitch Type Single Pitch Hub Diameter 1 13/16 in Hub Projection 0.
591 in Includes Set Screws Keyway No Keyway Depth Not Applicable Keyway Width Not Applicable Length through Bore 7/8 in- Alternate Part Numbers- 6L842- 40B15F12- 6L842
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
40B15F-1/2
Manufacturer Part Number:
TSUBAKI
