Description

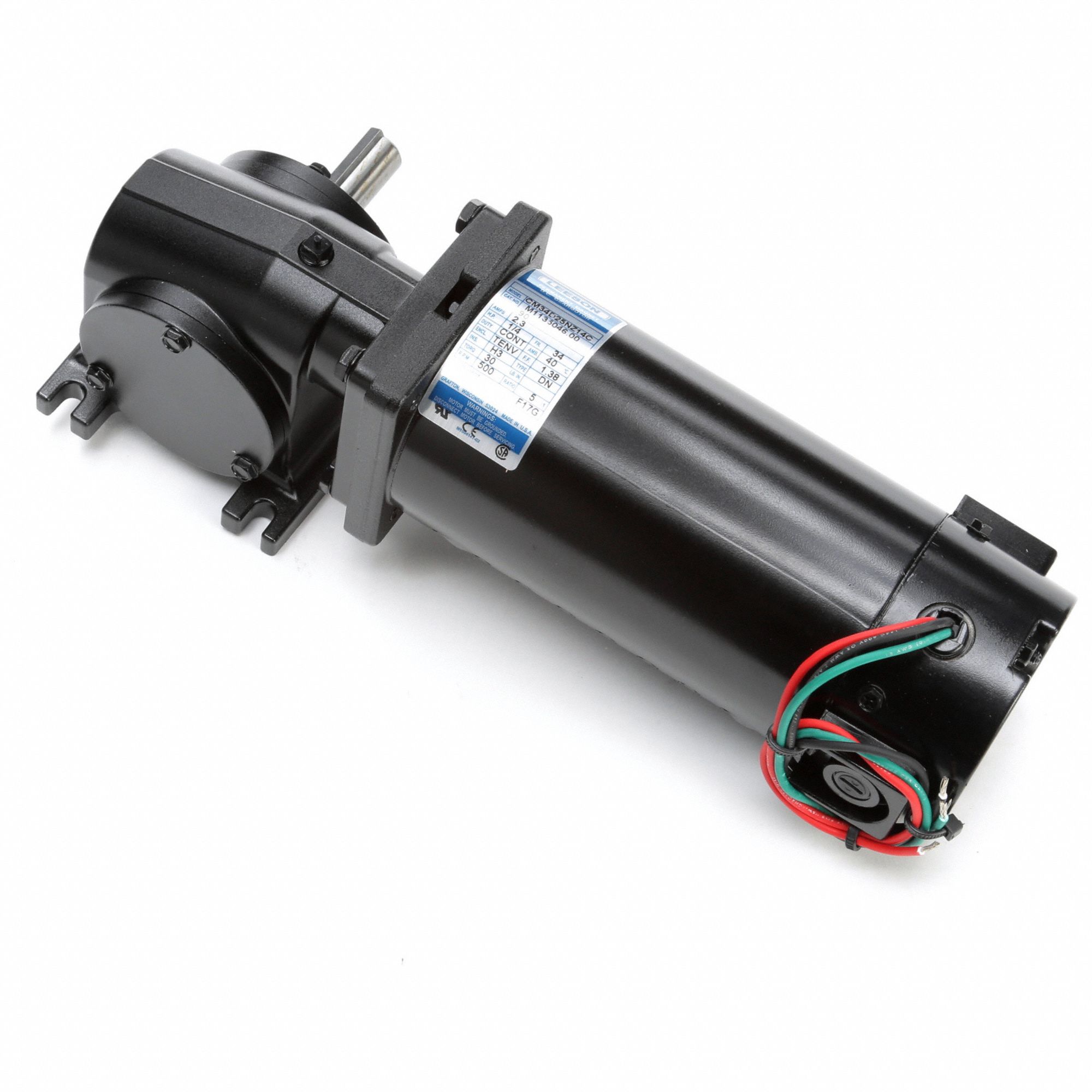

Right Angle Gearmotors Shaft Orientation Right Angle Motor Enclosure Totally Enclosed Nonventilated Operating Voltage 90V DC Motor Type Permanent Magnet DC Nameplate Speed 500 RPM Maximum Torque 30 in-lb Starting Torque 30 in-lb Overhung Load Capacity 235 ft-lb Rotation CW/CCW Output Shaft Height 1.
67 in Mounting Orientation Horizontal Gear Ratio 5 1 Input Horsepower 1/4 hp Motor Insulation Class H Efficiency 61.
1 Percent Output Shaft Diameter 5/8 in- Alternate Part Numbers- 794AZ0- M113504600
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
US
Manufacturer Name:
M1135046.00
Manufacturer Part Number:
LEESON
