Description

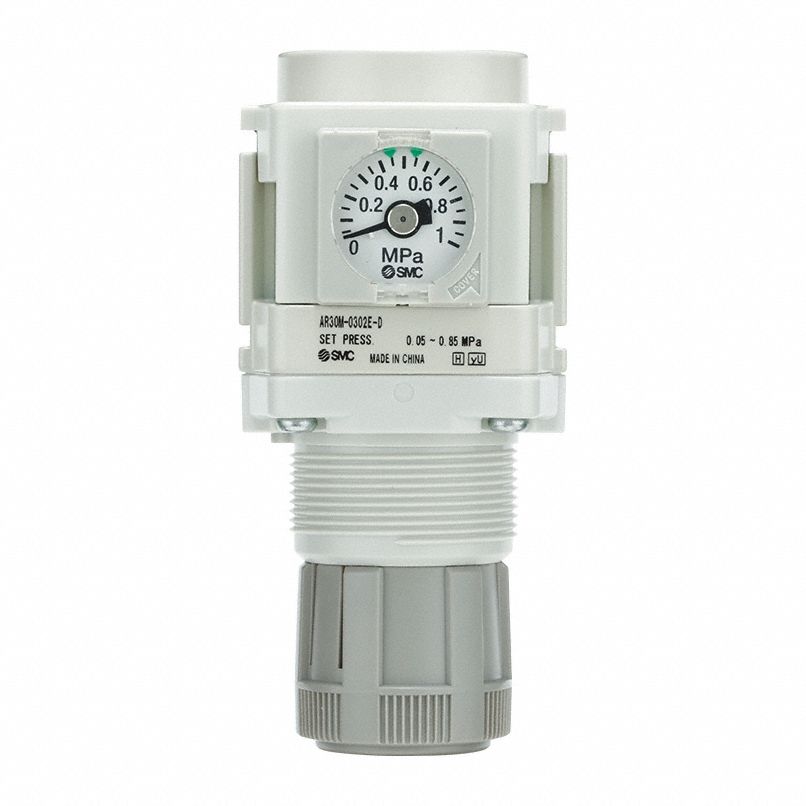

Regulator Air Inlet Size 1/4 in Air Inlet Type G Maximum Operating Pressure 1 MPa Maximum Operating Temperature 60 Degrees C Pressure Gauge Included Yes Adjustment Mechanism Knob Overall Width 42 mm Adjustment Location Bottom System Location Air Line Series AR-D Adjustment Mechanism Material Rubber Air Flow Direction Left to Right Air Outlet Size 1/4 in Air Outlet Type G Body Material Die-Cast Zinc For Fluid Type Air For Substance Type Air- Alternate Part Numbers- 807FL8- AR20F02D
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
AR20-F02-D
Manufacturer Part Number:
SMC
