Description

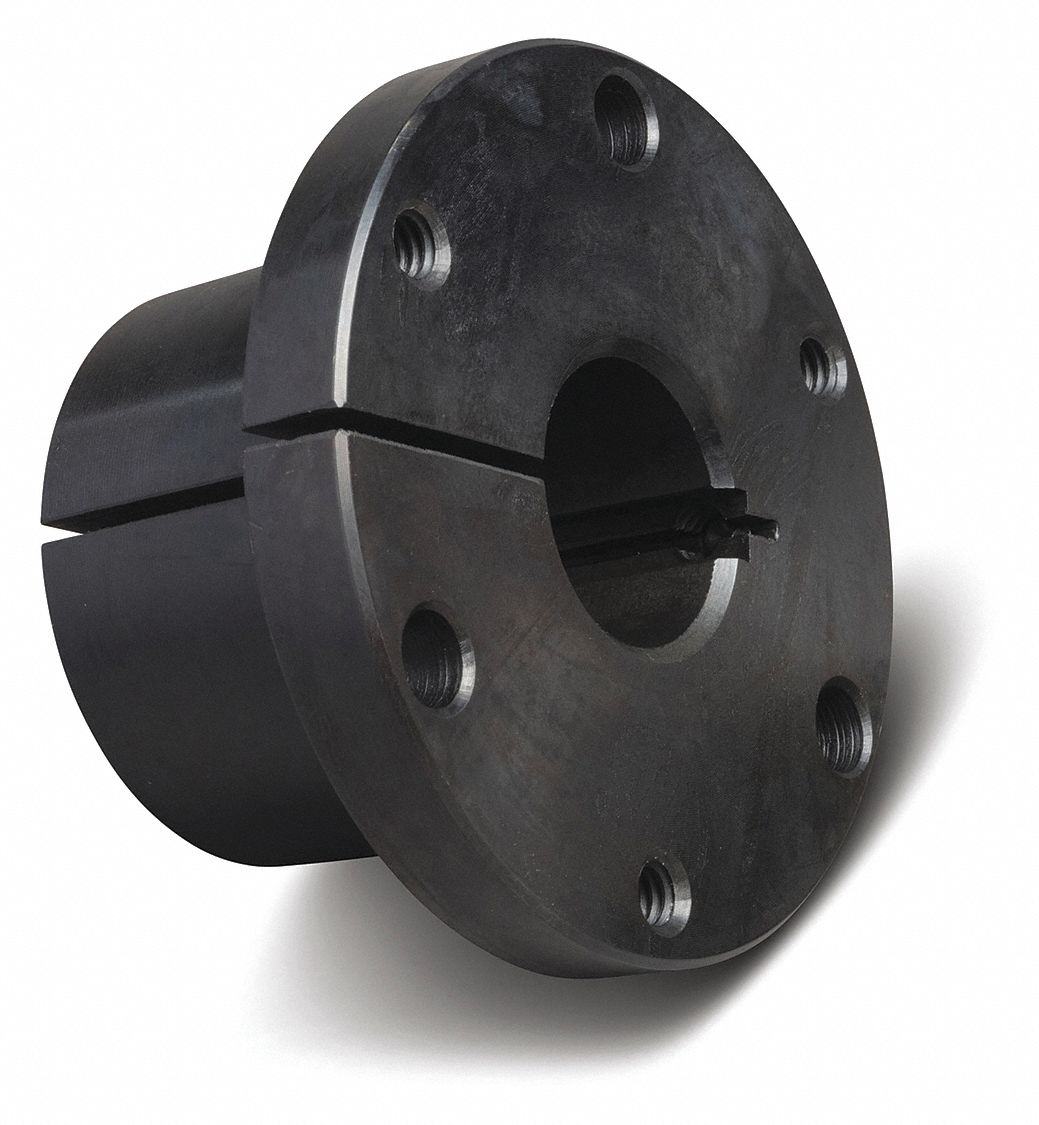

Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series SD Bore Diameter 1 in Length 1.
813 in Bolt Circle Diameter 2.
69 in Bolt Size 1/4 In.
-20 x 1-7/8 in System of Measurement Inch Bushing Diameter 2.
188 in Flange Type Split Flange Width 7/16 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 1/8 in Keyway Width 1/4 in Length Less Flange 1.
375 in Material Steel Overall Diameter 3.
188 in SAE Grade 5 Taper 3/4 in Per ft- Alternate Part Numbers- 41D875- SD1- 41D875
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
SD1
Manufacturer Part Number:
APPROVED VENDOR
