Description

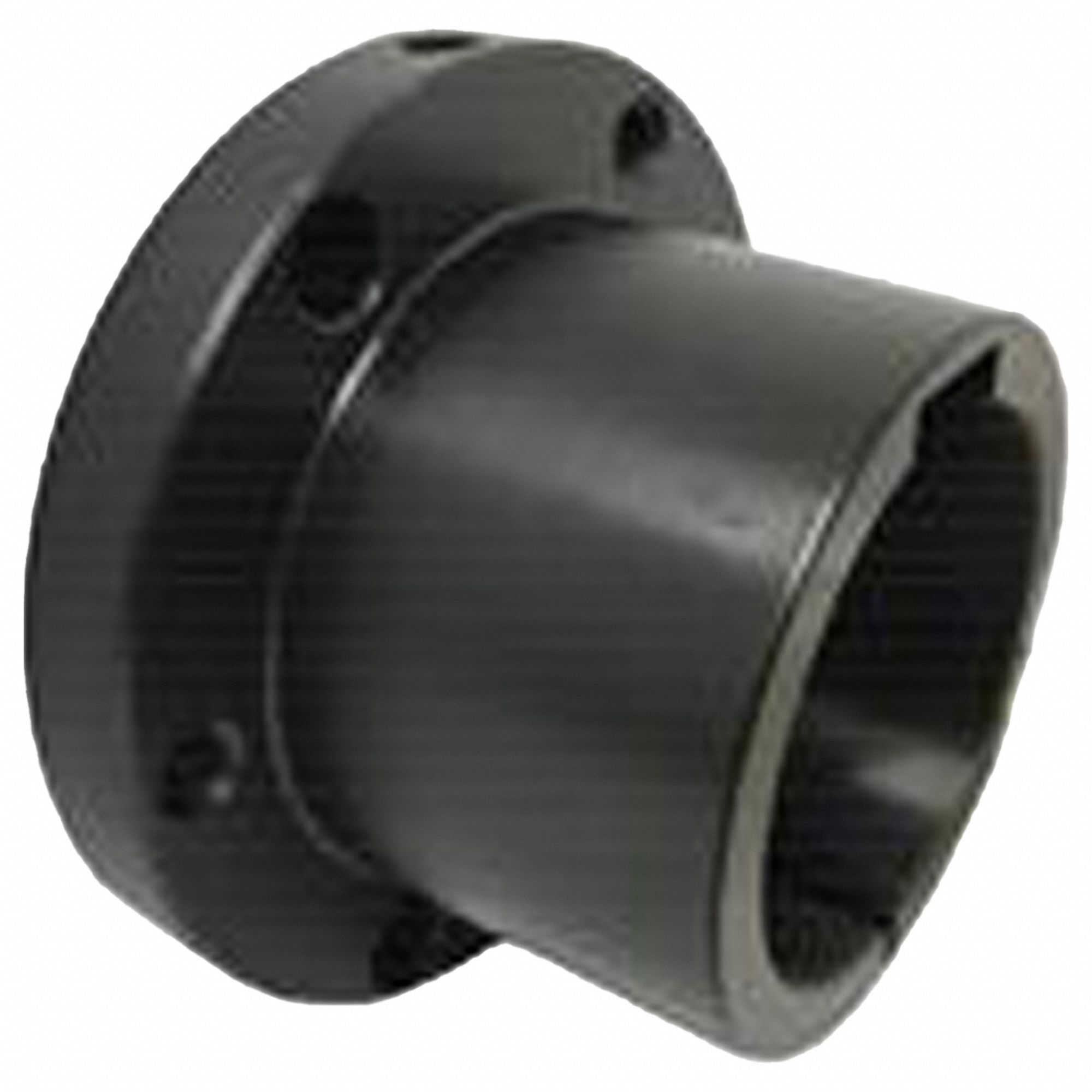

Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series SD Bore Diameter 1 13/16 in Length 1.
813 in Bolt Circle Diameter 2.
69 in Bolt Size 1/4 In.
-20 x 1-7/8 in System of Measurement Inch Bushing Diameter 2.
188 in Fastener Tightening Torque Capacity 5 000 in-lb Flange Type Split Flange Width 7/16 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 1/4 in Keyway Width 1/2 in Length Less Flange 1.
375 in Material Steel Overall Diameter 3.
188 in- Alternate Part Numbers- 813CA2- SDX11316
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
SDX1-13/16
Manufacturer Part Number:
APPROVED VENDOR
