Description

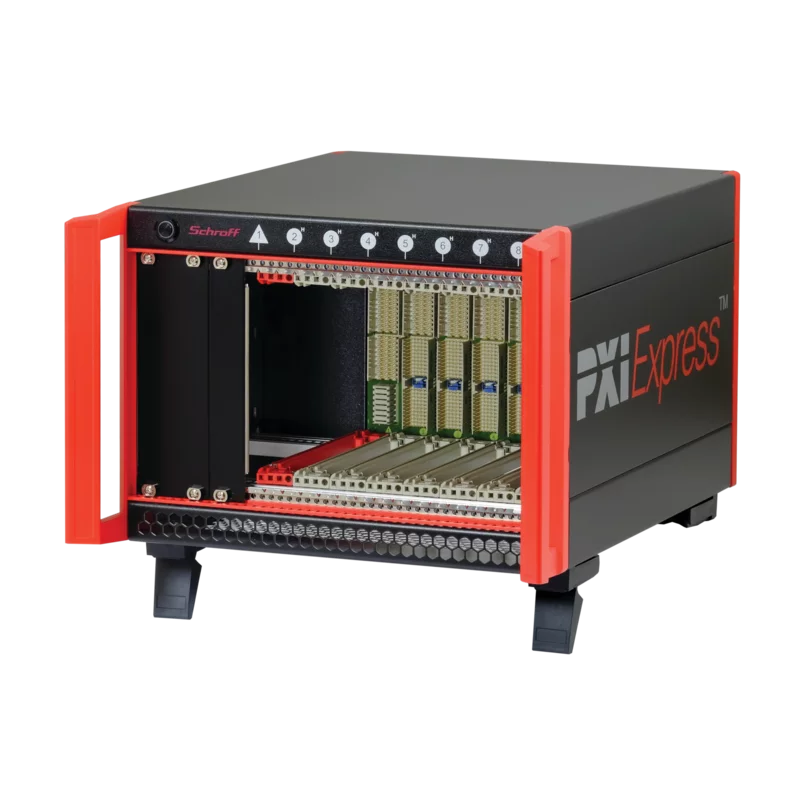

- PXI Express Desktop Chassis, 4 U, 44 HP
- 1 PXIe System Slot an 7 Hybrid Slots
- Four-link System Slot, 3 Peripheral Slots with PCIe Gen3 x4 and 4 Peripheral Slots with PCIe Gen2 x1 Links
- Powerful cooling concept with low fan noise, 50 W per slot @ 15K temperature increase
- Air flow from bottom to rear with temperature controlled fans; Integrated Chassis Monitoring Modul (CMM)

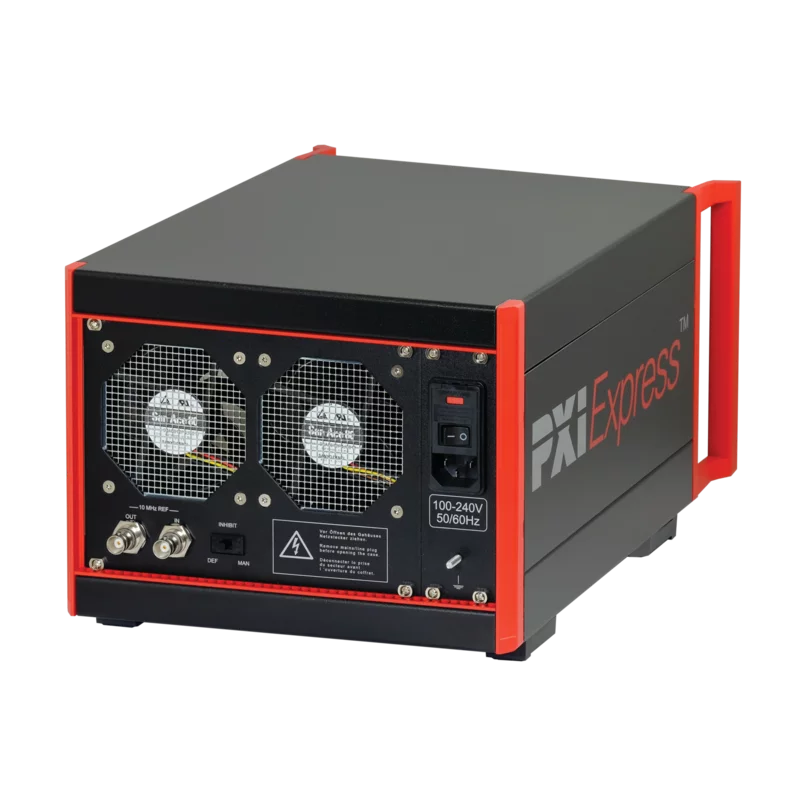

- Wide range AC input with mains switch on the rear side, power push button on the front (top)
- Rear panel external 10 MHz clock inputs/outputs
PRODUCT ATTRIBUTES
- Number of Slots: 8
- Type: Desktop
- Backplane Type: PXI Express, 4 Link Configuration
- Data Transfer: PCIe Gen2; PCIe Gen3
- Power per Slot: 50 W
- Input Voltage AC: 100 – 240 V
- Airflow Direction: Bottom to Rear
- Rack Height: 4 U
- Power Supply Type: Open Frame
- Power Supply Included: Yes
- Rear I/O: No
- Complies With: PXISA PXI-5 R1.1
- Depth: 315 mm
