Description

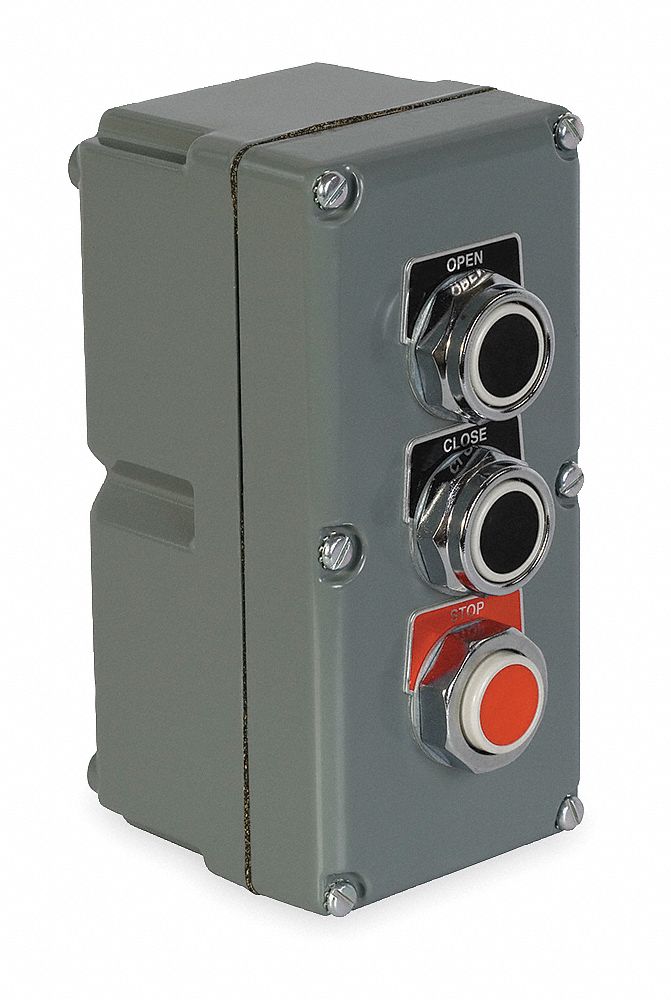

Push Button Control Station Number of Operators 3 Size 30 mm Legend Open/Close/Stop Type of Operator Push Button/Push Button/Push Button Action Momentary / Momentary / Momentary Contact Form 3NO/3NC Mechanical Interlock No NEMA Rating 1 13 3 4 Contact Rating 10A @ 600V AC 2.
5A @ 24V DC NEMA Contact Rating Designation A600/Q600 Mounting Wall Hub 3/4 in NPT Height 3.
53 in Width 3.
58 in Depth 7.
5 in Enclosure Material Cast Zinc Enclosure Color Gray
Features
Extra Information
Processing Time:
2-3 days
