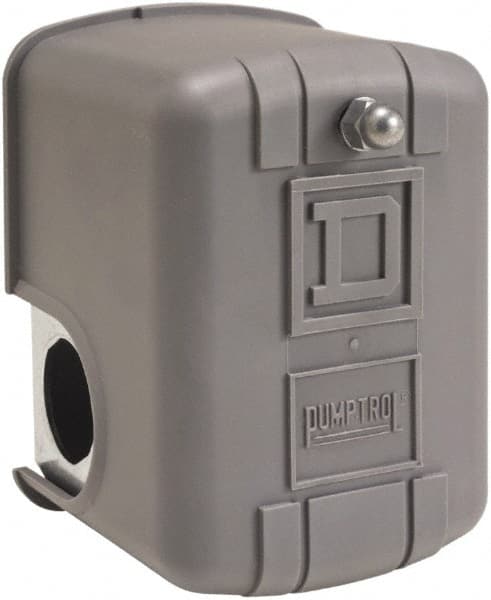

SQUARE D 9013FHG22J27X - PRESSURE SWITCH DPST 80/100PSI 1/4 FNPS - PRESSURE SWITCH AIR AND WATER PRESSURE DIAPHRAGM ACTUATION TYPE STANDARD ACTION RANGE 20 TO 100 PSI DIFFERENTIAL 20 PSI CONTACT FORM DPST 1-PORT 1/4 IN FNPS PORT TYPE 1/4 IN COMPRESSION UNLOADER FACTORY ON/OFF SETTING 80/100 PSI 2 HP @ 1 PHASE - 120V 3 HP @ 1 PHASE - 230V 5 HP @ 3 PHASE - 230V 1 HP @ 3 PHASE - 460V 9013FHG SERIES BURST PRESSURE 220 PSI SINGLE/THREE PHASE 10A @ 575V AC CONTACT RATING NEMA RATING 1 IP RATING 54 TEMP RANGE -22 DEGREES TO 257 DEGREES F - EQUAL TO G2008316
Features
Specs
Manufacturer Name:
SQUARE D
Manufacturer Part Number:
9013FHG22J27X
