Description

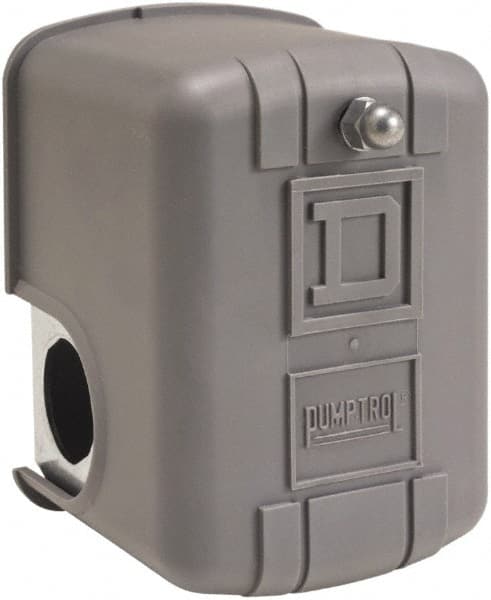

SQUARE D 9013FHG49J59X - PRESSURE SWITCH DPST 135/175PSI 1/4 MNPT - PRESSURE SWITCH AIR COMPRESSOR DIAPHRAGM ACTUATION TYPE STANDARD ACTION RANGE 60 TO 200 PSI DIFFERENTIAL 40 PSI CONTACT FORM DPST 1-PORT 1/4 IN MNPT PORT TYPE 1/4 IN COMPRESSION UNLOADER FACTORY ON/OFF SETTING 135/175 PSI 1-1/2 HP @ 1 PHASE - 120V 2 HP @ 1 PHASE - 230V 3 HP @ 3 PHASE - 230V 1 HP @ 3 PHASE - 460V 9013FHG SERIES BURST PRESSURE 200 PSI SINGLE/THREE PHASE 10A @ 575V AC CONTACT RATING NEMA RATING 1 IP RATING 54 TEMP RANGE -22 DEGREES TO 257 DEGREES F - EQUAL TO G0257984
Features
Specs
Manufacturer Name:
SQUARE D
Manufacturer Part Number:
9013FHG49J59X
