Description

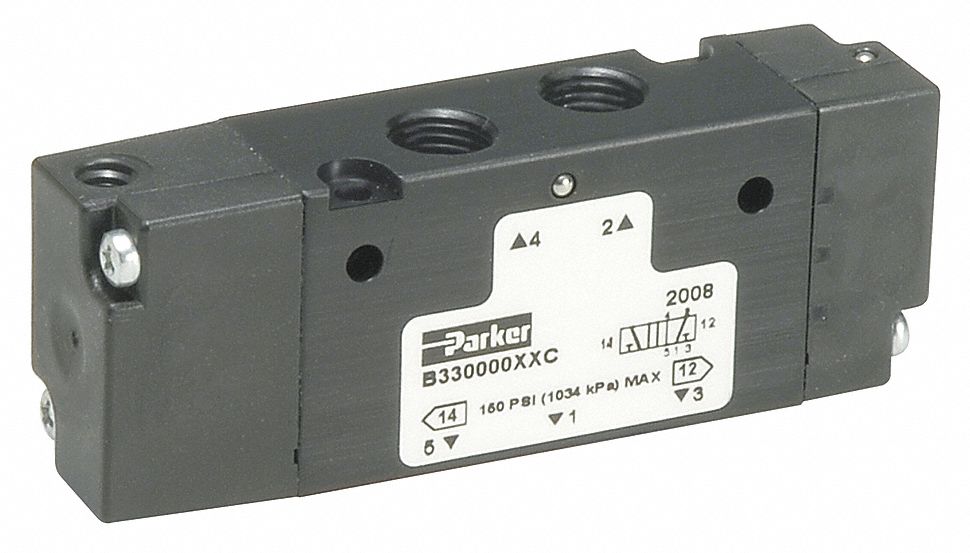

Pilot Air Control Valve Valve Ways and Positions 4-Way/2-Position Valve Actuator / Return Remote Pilot / Air Return Valve Port Size 1/4 in Max CFM - Valves 1.
4 cfm Max Operating PSI 145 psi Pilot Pressure 20 psi Pilot Port Size NPT (In.
) 10-32 UNF Max Temp Range (F) 5 to 120 Vacuum External Pilot Coefficient of Volume 1.
4 Cycles per Minute - Length (In.
) 4 3/8 in Width (In.
) 1 9/50 in Height (In.
) 1 7/8 in Uses General Pneumatics Applications Pilot Air Control Valve
Features
Extra Information
Processing Time:
2-3 days
