Description

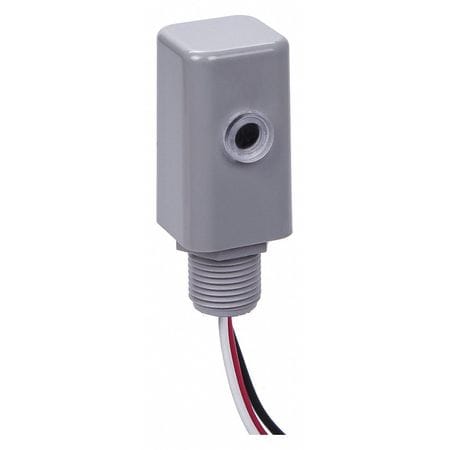

INTERMATIC EK4136S - PHOTOCONTROL 1/2 -14 NPSM THREAD MOUNT - PHOTOCONTROL MOUNTING 1/2 IN.
-14 NPSM THREAD VOLTAGE 105 TO 305VAC MAX WATTAGE 1000 MAX INCANDESCENT AMPS 15.
0 MAX BALLAST AMPS 8.
3 1.
5 FOOT CANDLES ON 2.
25 FOOT CANDLES OFF COLOR GRAY TEMP RANGE -40 DEGREES TO 158 DEGREES F LENGTH 2-1/4 IN.
WIDTH 1-1/3 IN.
DEPTH 1-1/4 IN.
ENCLOSURE TYPE RAINTIGHT CONTACT FORM SPST HOUSING MATERIAL PLASTIC SETTING DUSK TO DAWN STANDARDS ANSI C136.
24 UL773 CSA C22.
2 NO 55-M1986/TIL -15 INCLUDES LIGHT SHIELD MOUNTING HARDWARE - EQUAL TO G6137041
Features
Specs
Manufacturer Name:
INTERMATIC
Manufacturer Part Number:
EK4136S
