Description
Description, Features & Benefits
| Specifications: | |
|---|---|
| Manufacturer/Brand: | Pentek |
| Filter Series: | ECP |
| Part Number: | 255490-43 |
| Alternate Part Number(s): | 25549043 |
| Type: | Sediment - Pleated |
| Material(s): | Resin-Impregnated Cellulose and Polyester |
| Size: | 4 1/2 x 9 3/4 Inches (114 x 248mm) |
| Micron Rating: | 5 (Nominal) |
| Pressure Loss: | 1.0 psi @ 20 GPM |
| Validation: | |
| GTIN: | 051678490433 |
| Specifications Sheet: | Pentek ECP Series Specs |

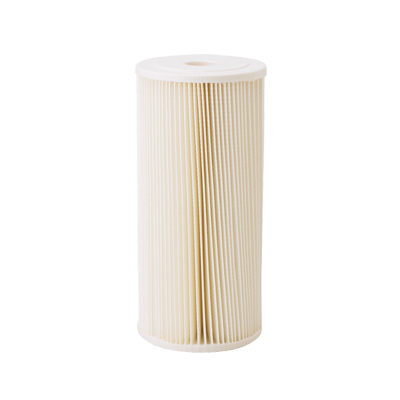

ECP5-BB cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers.
This unique blend of materials provides a higher wet strength than regular cellulose cartridges. It also provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat block in this fashion fuses the components together forming a unified end cap and gasket.
ECP Series cartridge end caps feature a color-coding system for easy identification of micron ratings: Tan (1-micron), White (5-micron), Blue (20-micron), Yellow (50- micron).
The new ECP5-BB cartridges contain more media surface area than most competitive cartridges.
- Replaces CP and HFCP Series cartridges
- Special formulation of resin-impregnated cellulose and polyester fibers
- Provides higher wet strength than regular cellulose cartridges
- Minimal unloading and media migration
Features
Specs
Country of Origin:
US
Manufacturer Name:
Pantek
Manufacturer Part Number:
255490-43
