Description

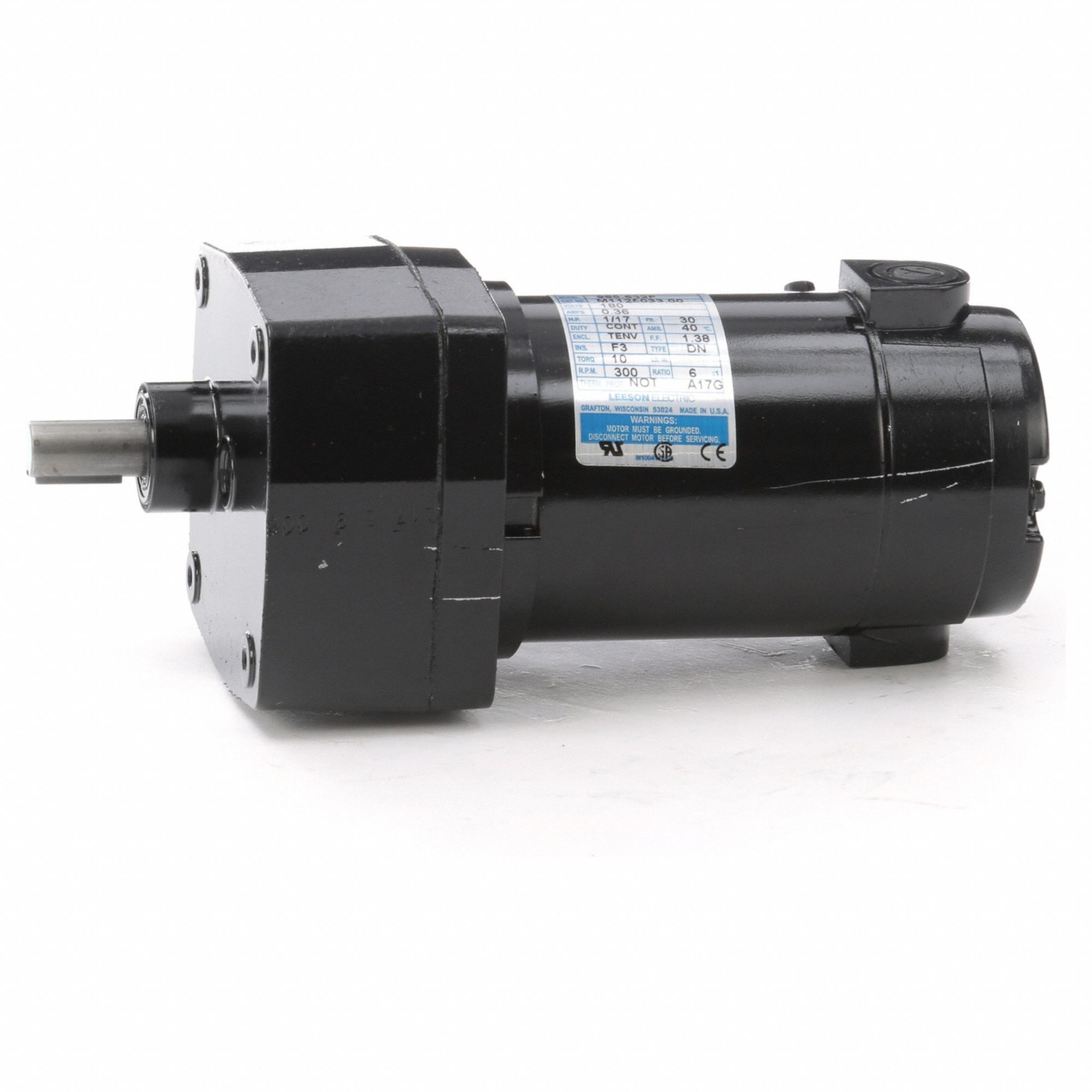

Parallel Shaft Gearmotors Shaft Orientation Parallel Motor Enclosure Totally Enclosed Nonventilated Operating Voltage 180V DC Motor Type Permanent Magnet DC Nameplate Speed 300 RPM Maximum Torque 10 in-lb Starting Torque 10 in-lb Overhung Load Capacity 180 ft-lb Rotation CW/CCW Output Shaft Height 3 in Mounting Orientation Horizontal Vertical with Shaft Down Gear Ratio 6 1 Input Horsepower 1/17 hp Motor Insulation Class F Efficiency 55.
9 Percent Output Shaft Diameter 1/2 in- Alternate Part Numbers- 794AR6- M112503300
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
US
Manufacturer Name:
M1125033.00
Manufacturer Part Number:
LEESON
