Description

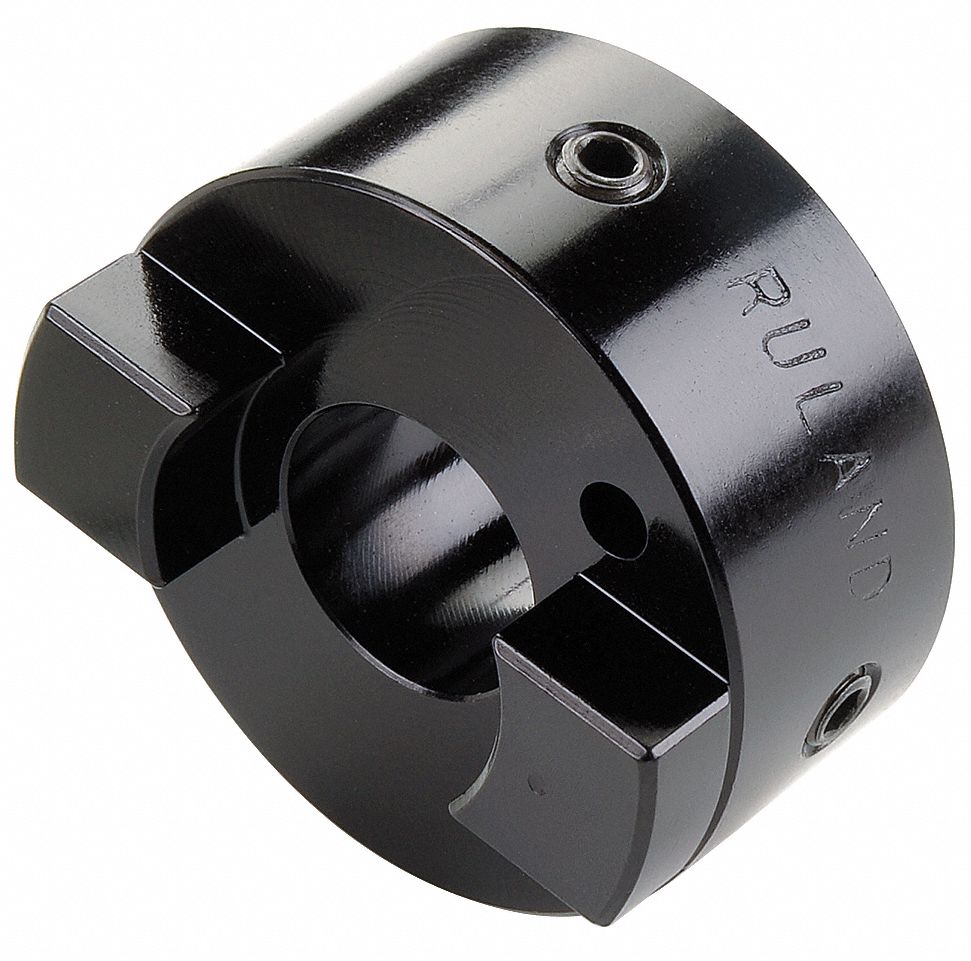

Motion Control Coupling Hub Angular Misalignment 0.
5 Degrees Axial Motion 0.
15 mm Coupling Size MOST33 Outside Diameter 33.
3 mm Over-Standard Parallel Misalignment 3.
33 mm Parallel Misalignment 0.
2 mm Coupling Overall Length 47.
6 mm Hub Material Aluminum Length through Bore 15 mm System of Measurement Metric Bore Diameter 9 mm Maximum Speed 4 500 RPM Bore Type Round Shaft Locking Type Set Screw Keyway Depth Not Applicable Keyway Width Not Applicable Screw Seating Torque 2.
2 N-m
Features
Extra Information
Processing Time:
2-3 days
