Report item
Description

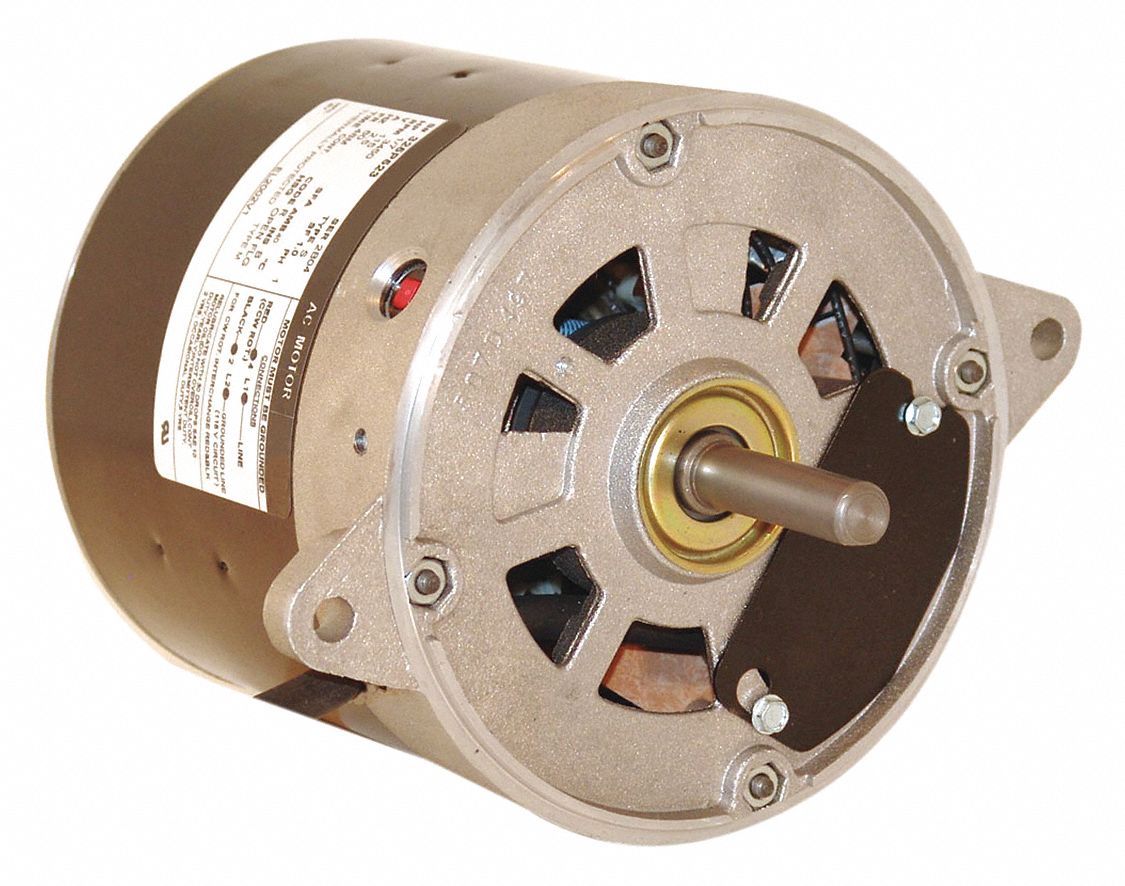

Oil Burner Motor Single Phase Motor Design Split-Phase 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115V AC 4.
3 A Full Load Amps 48N Frame Output Watts 250 W 60 Hz Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Manual Ins.
Class B Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Motor Mounting Type Face Motor Frame Material Steel Motor Mounting Position All Angle
Features
Extra Information
Processing Time:
2-3 days
Reviews
