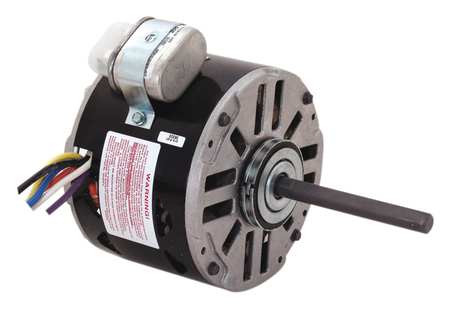

CENTURY 9704 - MTR PSC 1/8 HP 1550 115/208-230V 48Y OAO - DIRECT DRIVE BLOWER MOTOR PSC MOTOR TYPE OPEN AIR-OVER ENCLOSURE 1/8 HP 1550 NAMEPLATE RPM VOLTAGE 115/208-230 2.
7/1.
2-1.
4 FULL LOAD AMPS 60/50 HZ 1 PHASE 48Y FRAME SERVICE FACTOR 1.
0 MAX AMBIENT TEMP 40 DEGREES C INSULATION CLASS B DUTY CONTINUOUS AIR OVER NUMBER OF SPEEDS 1 MOUNTING RING SHAFT ORIENTATION ALL ANGLE BEARINGS SLEEVE THERMAL PROTECTION AUTO ROTATION CCWLE BODY DIA 5-5/8 IN.
LENGTH LESS SHAFT 5-1/8 IN.
SHAFT DIA 1/2 IN.
SHAFT LENGTH 4 IN.
- EQUAL TO G3213506
Features
Specs
Manufacturer Name:
CENTURY
Manufacturer Part Number:
9704
