Description

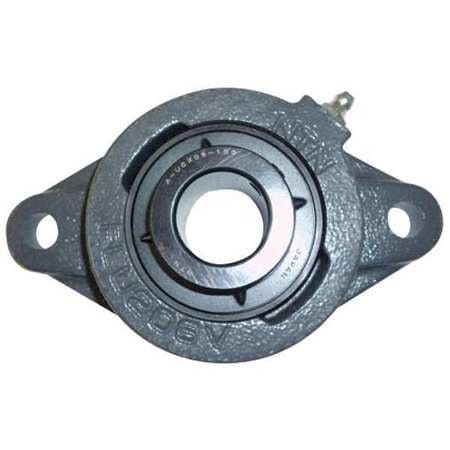

NTN UCFLU-5/8M - MOUNTED BALL BEARING 5/8 IN BORE - MOUNTED BALL BEARING NUMBER OF BOLTS 2 STANDARD DUTY SERIES BORE DIA 5/8 IN.
BALL BEARING TYPE STEEL BEARING MATERIAL CAST IRON HOUSING MATERIAL SET SCREW LOCKING TYPE MOUNTING HOLE CENTER 3 IN.
OVERALL HEIGHT 1-19/64 IN.
OVERALL WIDTH 3-27/32 IN.
OVERALL LENGTH 2-13/32 IN.
BOLT HOLE SIZE 3/8 IN.
BALL BEARING INSERT DYNAMIC LOAD CAPACITY 2 160 LB.
STATIC LOAD CAPACITY 1 030 LB.
TEMP RANGE -20 DEGREES TO 250 DEGREES F DURABLE PAINT/BLACK OXIDE FINISH BLACK - EQUAL TO G1976931
Features
Specs
Manufacturer Name:
NTN
Manufacturer Part Number:
UCFLU-5/8M
