Report item
Description

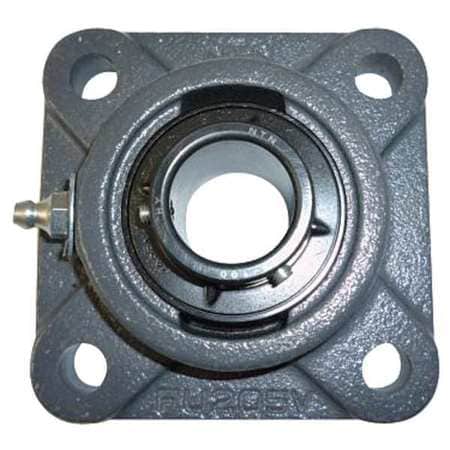

NTN UCFU-2.
3/16M - MOUNTED BALL BEARING 2-3/16 IN BORE - MOUNTED BALL BEARING NUMBER OF BOLTS 4 STANDARD DUTY SERIES BORE DIA 2-3/16 IN.
BALL BEARING TYPE STEEL BEARING MATERIAL CAST IRON HOUSING MATERIAL SET SCREW LOCKING TYPE MOUNTING HOLE CENTER 5-1/8 IN.
OVERALL HEIGHT 2-17/32 IN.
OVERALL WIDTH 6-13/32 IN.
OVERALL LENGTH 6-13/32 IN.
BOLT HOLE SIZE 5/8 IN.
BALL BEARING INSERT DYNAMIC LOAD CAPACITY 9 750 LB.
STATIC LOAD CAPACITY 6 550 LB.
TEMP RANGE -20 DEGREES TO 250 DEGREES F DURABLE PAINT/BLACK OXIDE FINISH BLACK - EQUAL TO G3295275
Features
Specs
Manufacturer Name:
NTN
Manufacturer Part Number:
UCFU-2.3/16M
