Description

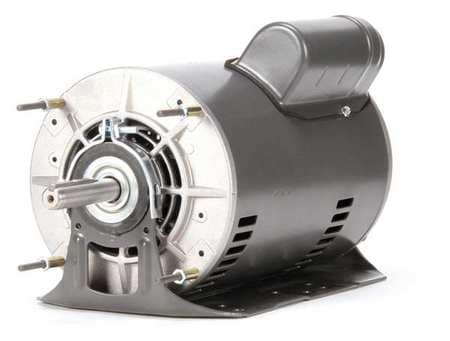

DAYTON 4YU21 - MOTOR PSC 1/3 HP 860 RPM 115V 56HZ OAO - DIRECT DRIVE BLOWER MOTOR PSC MOTOR TYPE OPEN AIR-OVER ENCLOSURE 1/3 HP 860 NAMEPLATE RPM VOLTAGE 115 5.
5 FULL LOAD AMPS 60 HZ 1 PHASE 56HZ FRAME SERVICE FACTOR 1.
35 MAX AMBIENT TEMP 40 DEGREES C INSULATION CLASS B DUTY CONTINUOUS AIR OVER NUMBER OF SPEEDS 1 MOUNTING CRADLE/STUD SHAFT ORIENTATION ALL ANGLE BEARINGS BALL THERMAL PROTECTION AUTO ROTATION CW/CCW BODY DIA 6-1/2 IN.
LENGTH LESS SHAFT 11-1/2 IN.
SHAFT DIA 5/8 IN.
SHAFT LENGTH 3-1/4 IN.
- EQUAL TO 4YU21
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
DAYTON
Manufacturer Part Number:
4YU21
