Description

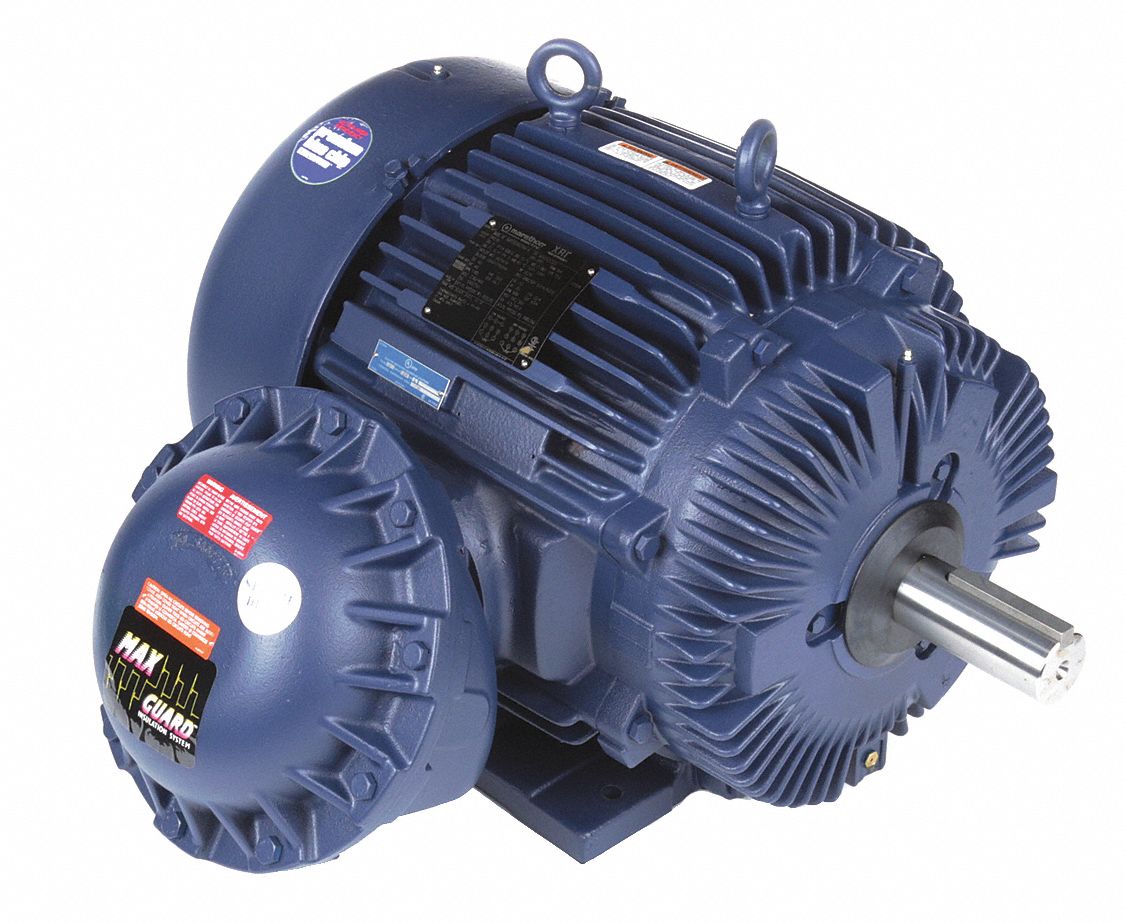

Hazardous Location Motor Three Phase Motor Design 3-Phase 40 HP Nameplate RPM 1 185 No of Speeds 1 Voltage 230/460V AC Full Load Amps 100.
0/50.
0 A 364T Frame Usable @ 208V No Usable @ 200V No Hz 60 Hz Max Ambient Temp 104 Degrees F Motor Service Factor 1.
15 Motor Thermal Protection T-Stat Ins.
Class F Hazardous Location Class 1 C D / 2 F G Temp Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base NEMA Design B
Features
Extra Information
Processing Time:
2-3 days
