Description

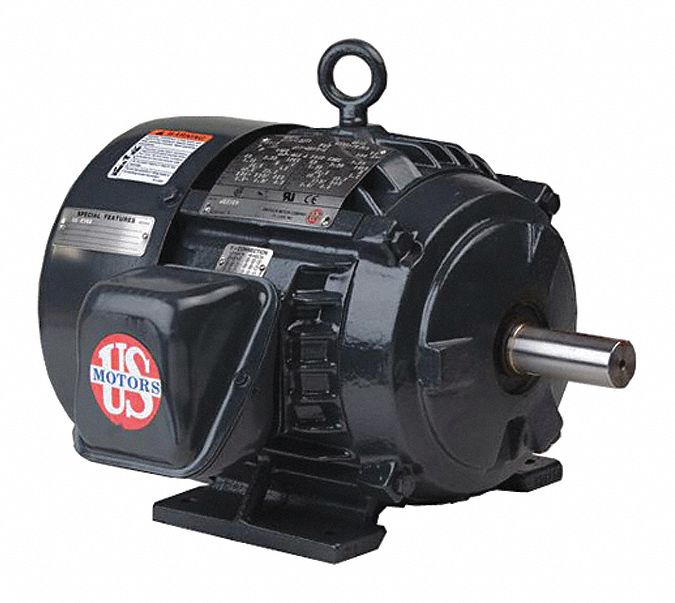

General Purpose Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 3 528 No of Speeds 1 Voltage 230V AC Full Load Amps 18.
3/9.
1 A 213T Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
