Description

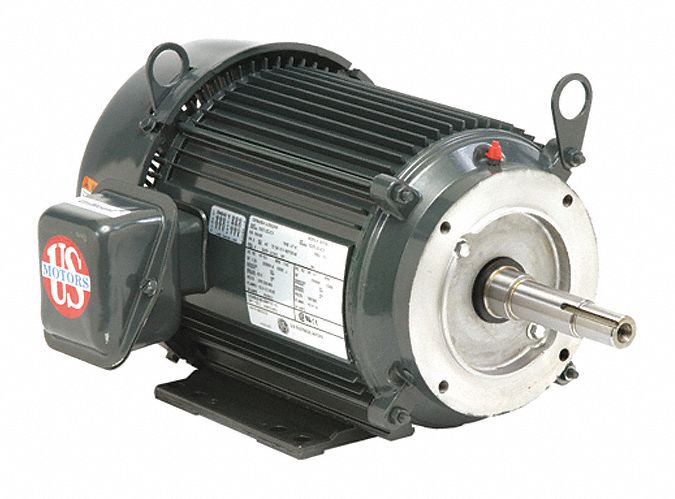

Close Coupled Pump Bearing Protection Shaft Shields Body Dia 11.
3 in Bolt Circle Dia 3/4 in Conduit Box Position F1 Duty Cycle Continuous Frame 213 Hz 60/50 Full Load Amps 20.
0-18.
2/9.
1 Height 10 1/4 in HP 7 1/2 Ins.
Class F Length Less Shaft 15 5/8 in Max Ambient Temp 40 Degrees C Max SF Amps 0-22.
5/11.
3 Motor Application Centrifugal Pump Motor Design 3-Phase Motor Efficiency Group Premium Efficient Motor Enclosure Design Totally Enclosed Motor Frame Material Aluminum
