Description

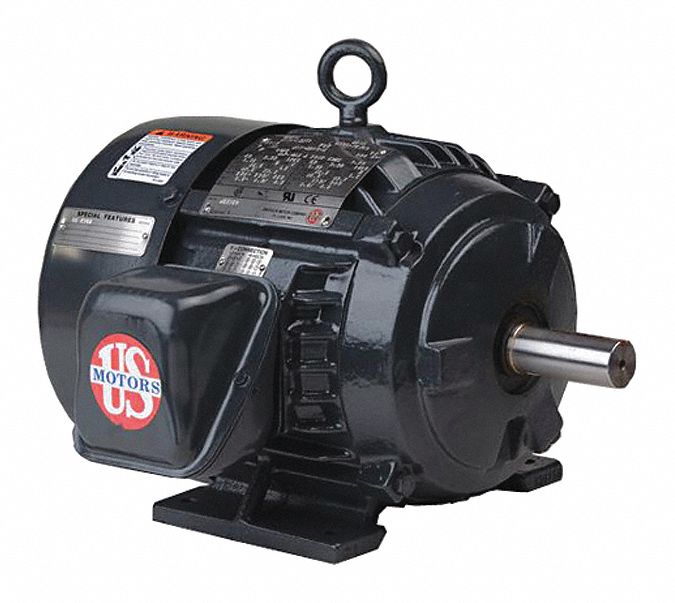

General Purpose Motor Three Phase Motor Design 3-Phase 50 HP Nameplate RPM 1 190 No of Speeds 1 Voltage 460V AC Full Load Amps 59.
0 A 405U Frame Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Shaft Design Keyed
Features
Extra Information
Processing Time:
2-3 days
