Report item
Description

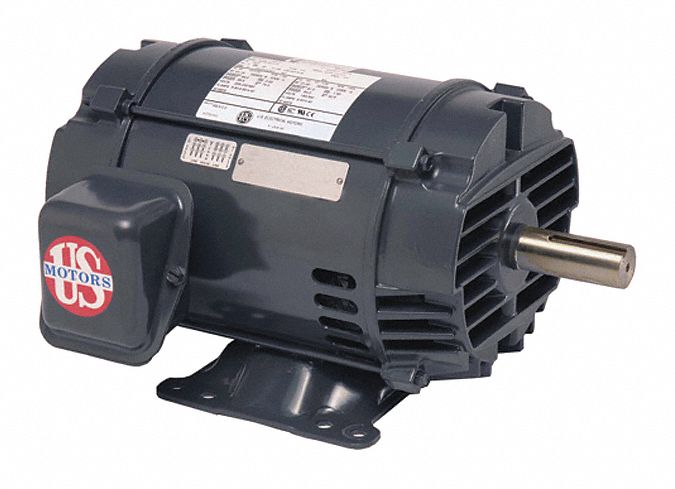

Motor Three Phase Motor Design 3-Phase 40 HP Nameplate RPM 3 545 No of Speeds 1 Voltage 230V AC 460V AC Full Load Amps 90.
0/45.
0 A 286TS Frame Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Steel
Features
Extra Information
Processing Time:
2-3 days
