Description

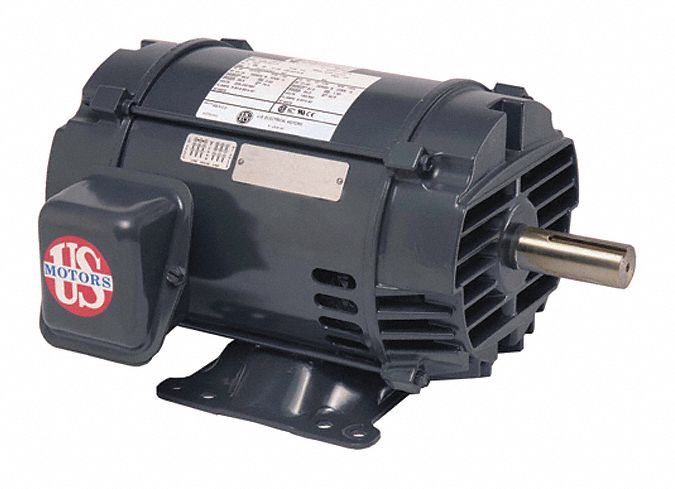

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 490 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 8.
3-7.
4/3.
7 A 145TC Frame Usable @ 208V Yes Hz 60/50 Hz Motor Service Factor 1.
15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Features
Extra Information
Processing Time:
2-3 days
