Description

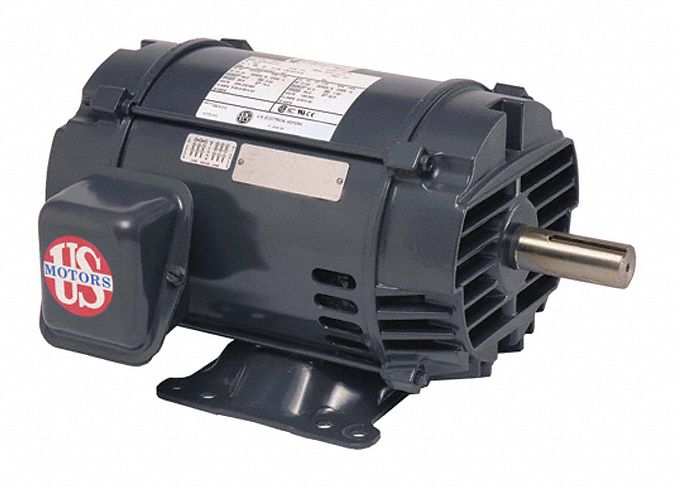

General Purpose Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 1 185 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 53.
0-48.
0/24.
0 A 286T Frame Usable @ 208V Yes Hz 60/50 Hz Motor Service Factor 1.
15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
