Description

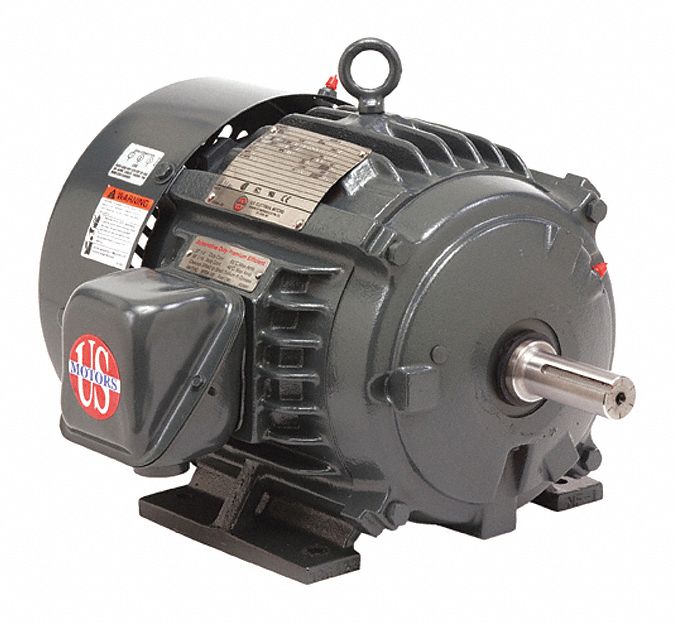

Motor Three Phase Motor Design 3-Phase 125 HP Nameplate RPM 1 790/2 685/90 No of Speeds 1 Voltage 460V AC Full Load Amps 164.
0 A 444T Frame Hz 60 Hz Motor Service Factor 1 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins.
Class H NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Features
Extra Information
Processing Time:
2-3 days
