Description

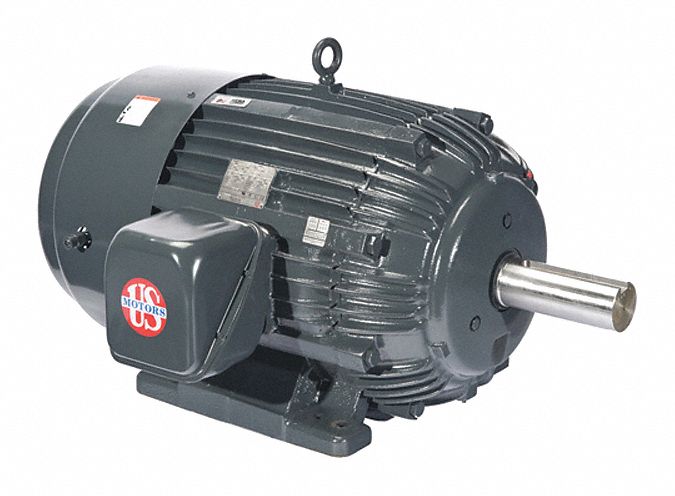

General Purpose Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 1 785 No of Speeds 1 Voltage 230V AC Full Load Amps 225.
0/112.
0 A 404T Frame Hz 60/50 Hz Motor Service Factor 1.
15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Features
Extra Information
Processing Time:
2-3 days
