Description

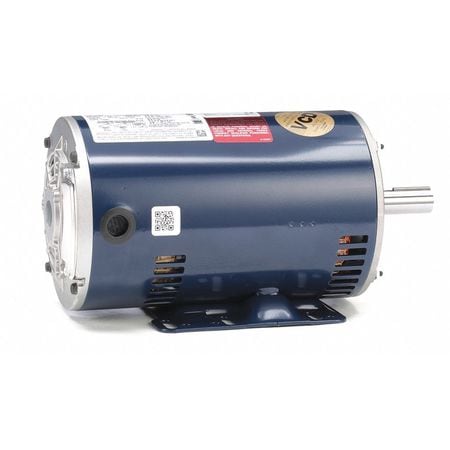

MARATHON 145TTDR6133 - MOTOR 3-PH 2 HP 1750 RPM 208-230/460V - GENERAL PURPOSE MOTOR 3-PHASE OPEN DRIPPROOF 2 HP NAMEPLATE RPM 1750 145T FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 6.
2-6.
0/3.
0 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOTOR MOUNTING TYPE RIGID BASE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INSULATION CLASS B 1.
15 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 13-1/2 IN.
MOTOR SHAFT DESIGN KEYED - EQUAL TO G6144932
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
MARATHON
Manufacturer Part Number:
145TTDR6133
