Description

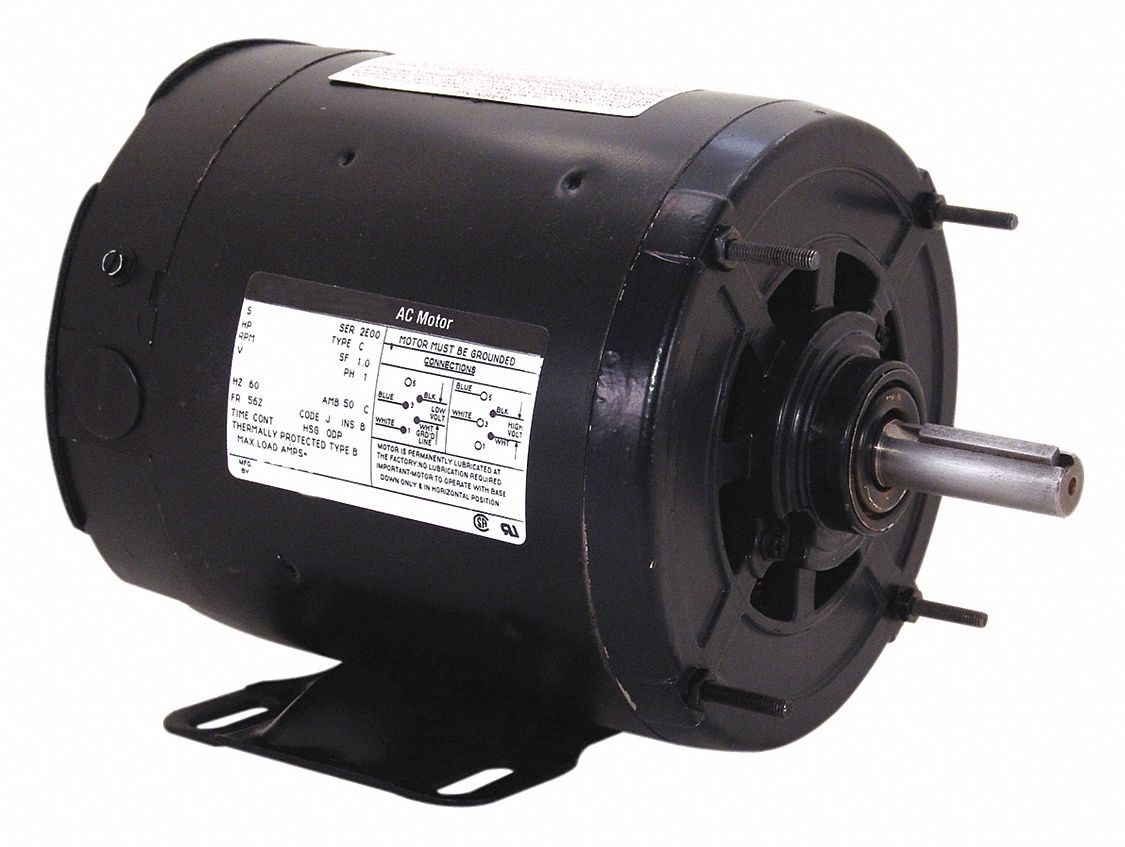

Belt Drive Motor Single Phase Motor Design Split-Phase 3/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115V AC 9.
6 A Full Load Amps 56Z Frame Usable @ 208V No Usable @ 200V No 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins.
Class B Max Ambient Temp 104 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base Motor Mounting Position All Angle Motor Frame Material Steel
Features
Extra Information
Processing Time:
2-3 days
