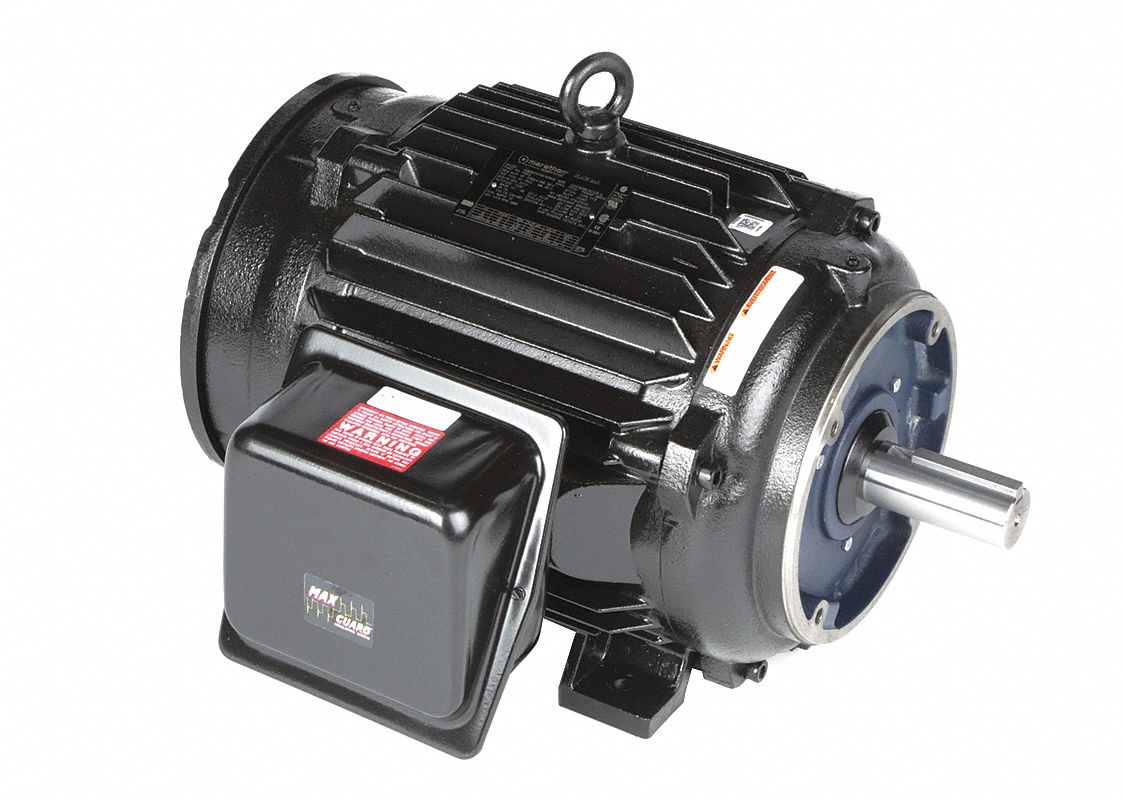

Vector Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 230/460V AC Full Load Amps 62.
0/31.
0 A 284TC Frame Torque 74.
2 ft-lb Max Speed 1 800 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins.
Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
