Description

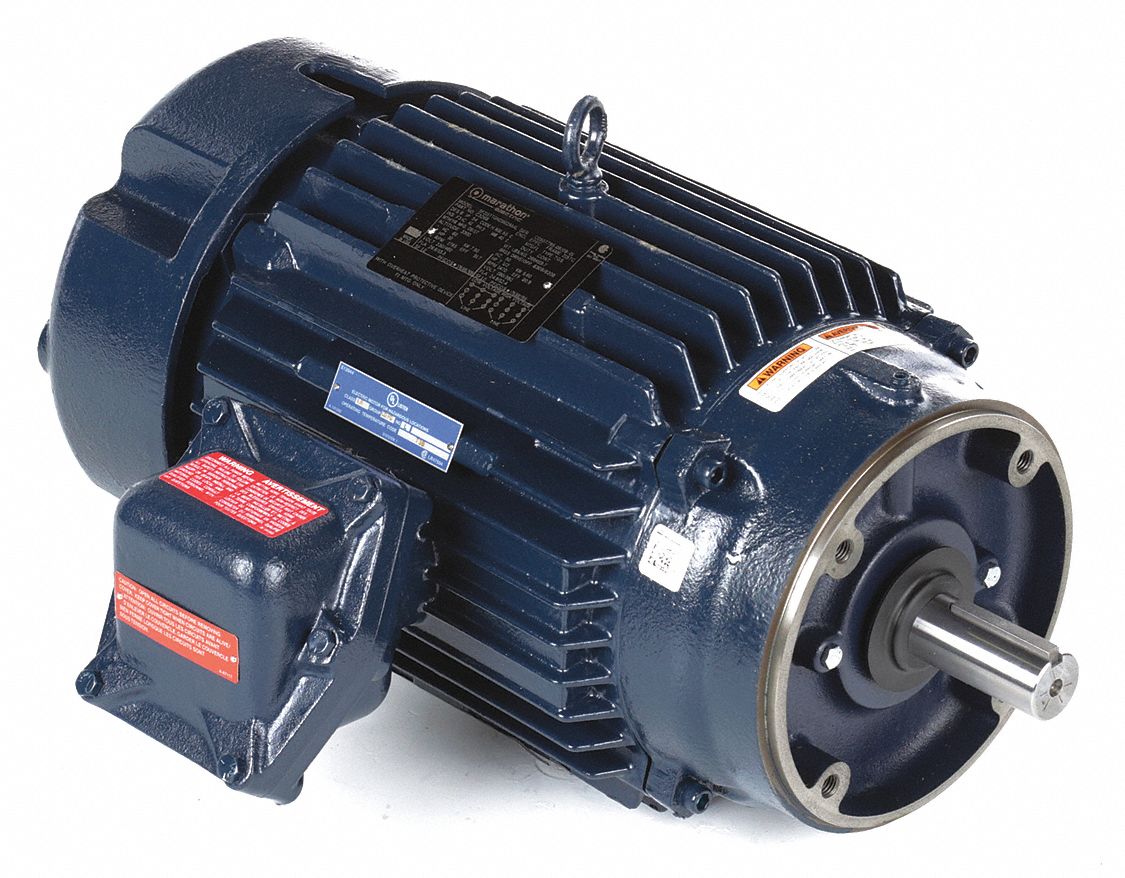

Hazardous Location Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 230/460V AC Full Load Amps 26.
6/13.
3 A 215TC Frame Usable @ 208V No Usable @ 200V No Hz 60 Hz Max Ambient Temp 104 Degrees F Motor Service Factor 1 Motor Thermal Protection T-Stat Ins.
Class F Hazardous Location Class 1 C D / 2 F G Temp Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Face NEMA Design B
