Description

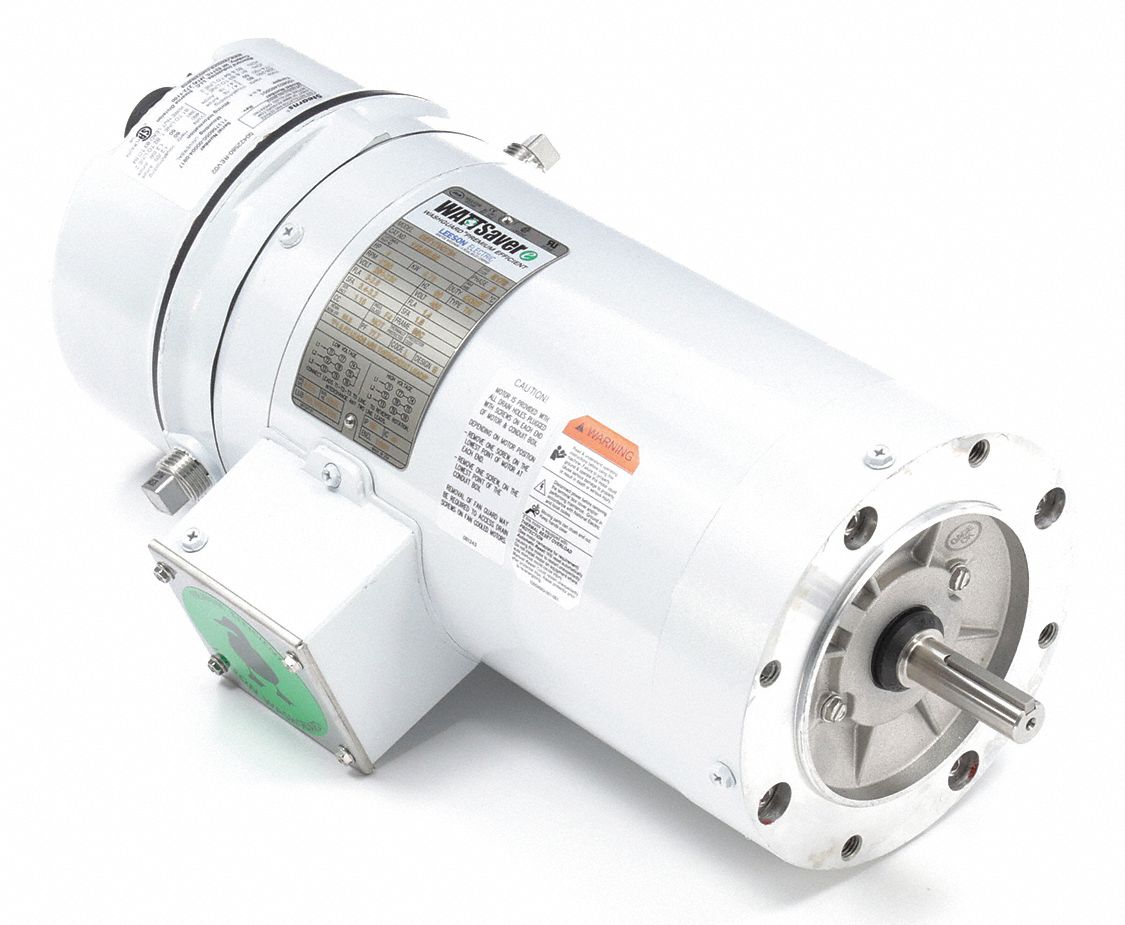

Washdown Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.
0-2.
8/1.
4 A 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.
15 Motor Thermal Protection None Ins.
Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face
