Description

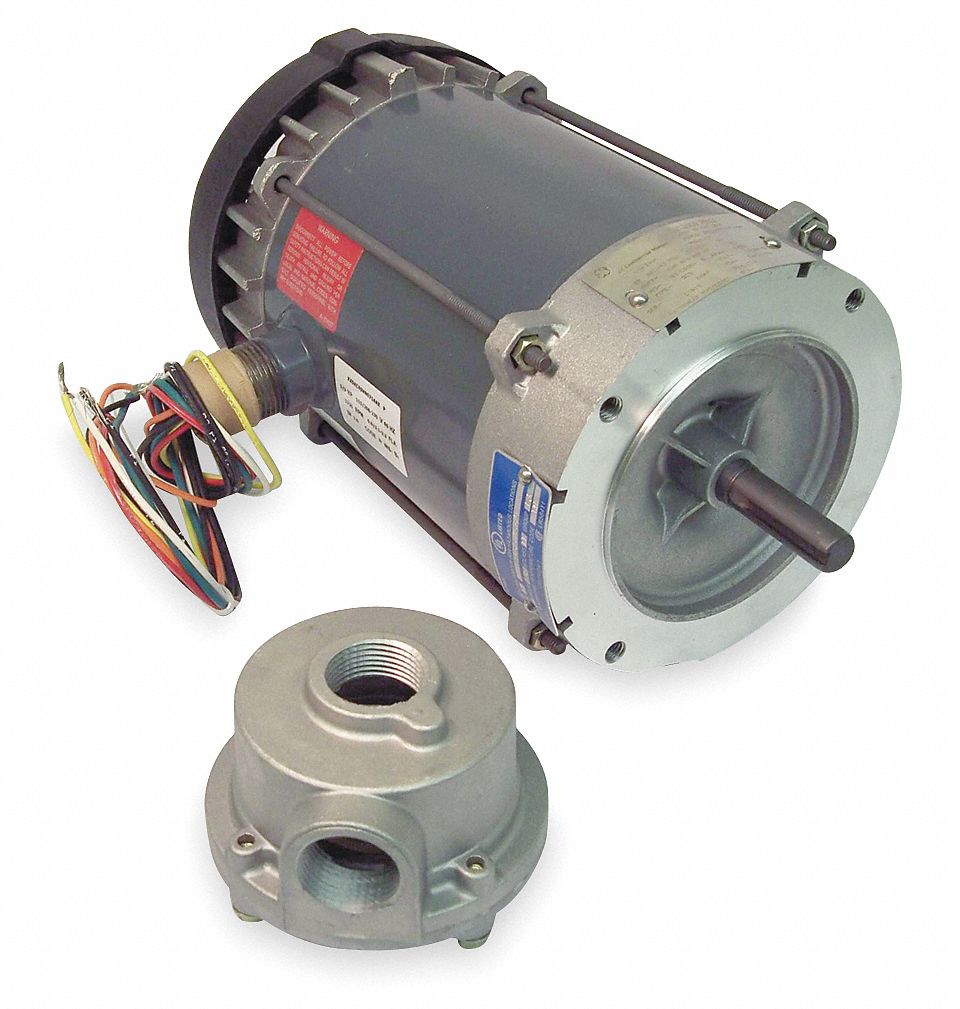

Hazardous Location Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 4.
7-4.
6/2.
3 A 145TC Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Max Ambient Temp 104 Degrees F Motor Service Factor 1.
15 Motor Thermal Protection T-Stat Ins.
Class F Hazardous Location Class 1 C D / 2 E F G Temp Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Face/Base
Features
Extra Information
Processing Time:
2-3 days
