Description

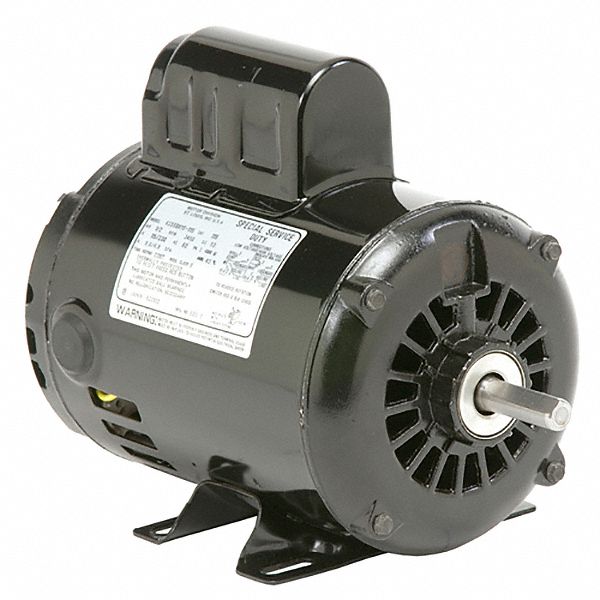

General Purpose Motor Single Phase Motor Design Capacitor-Start 1/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 3.
1/1.
5 A 48 Frame 60 Hz Hz Motor Service Factor 1.
35 Motor Thermal Protection None Ins.
Class B Max Ambient Temp 104 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Steel Shaft Dia 1/2 in- Alternate Part Numbers- 56HZ50- D14CP2P4
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
D14CP2P4
Manufacturer Part Number:
U.S. MOTORS
