Description

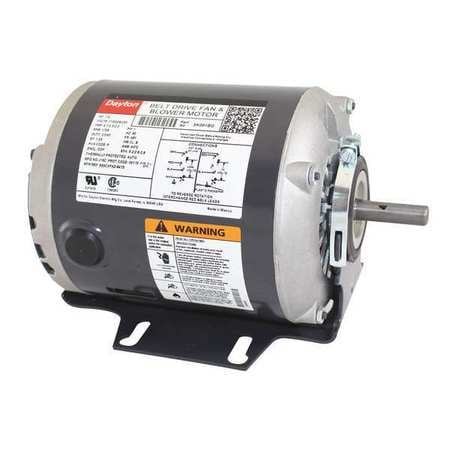

DAYTON 3K091 - MOTOR 1/4 HP 1725 RPM 115/208-230 V - BELT DRIVE MOTOR SPLIT-PHASE 1/4 HP NAMEPLATE RPM 1725 VOLTAGE 115/208-230 1 PHASE FRAME 48Y OPEN DRIPPROOF FULL LOAD AMPS 4.
7/2.
3-2.
2 60 HZ CRADLE BASE MOTOR MOUNTING TYPE MOTOR THERMAL PROTECTION AUTO INSULATION CLASS B SERVICE FACTOR 1.
35 BALL BEARINGS MAX AMBIENT TEMP 40 DEGREES C MOTOR SHAFT ROTATION CW/CCW OVERALL LENGTH 9-7/16 IN.
SHAFT DIA 1/2 IN.
SHAFT LENGTH 1-1/2 IN.
- EQUAL TO G0524474
Features
Specs
Manufacturer Name:
DAYTON
Manufacturer Part Number:
3K091
