Description

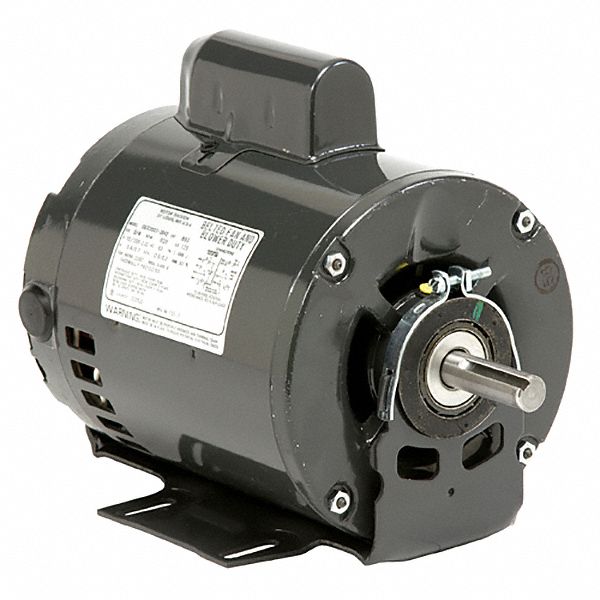

General Purpose Motor Single Phase Motor Design Capacitor-Start 1/3 HP Nameplate RPM 1 725/1 425 No of Speeds 1 Voltage 110/220V AC 115/230V AC Full Load Amps 3.
8/1.
9 A 48 Frame 60/50 Hz Hz Motor Service Factor 1.
35 Motor Thermal Protection None Ins.
Class B Max Ambient Temp 104 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position Horizontal Motor Frame Material Steel- Alternate Part Numbers- 56HZ45- D13CP2Z49
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
D13CP2Z49
Manufacturer Part Number:
U.S. MOTORS
