Description

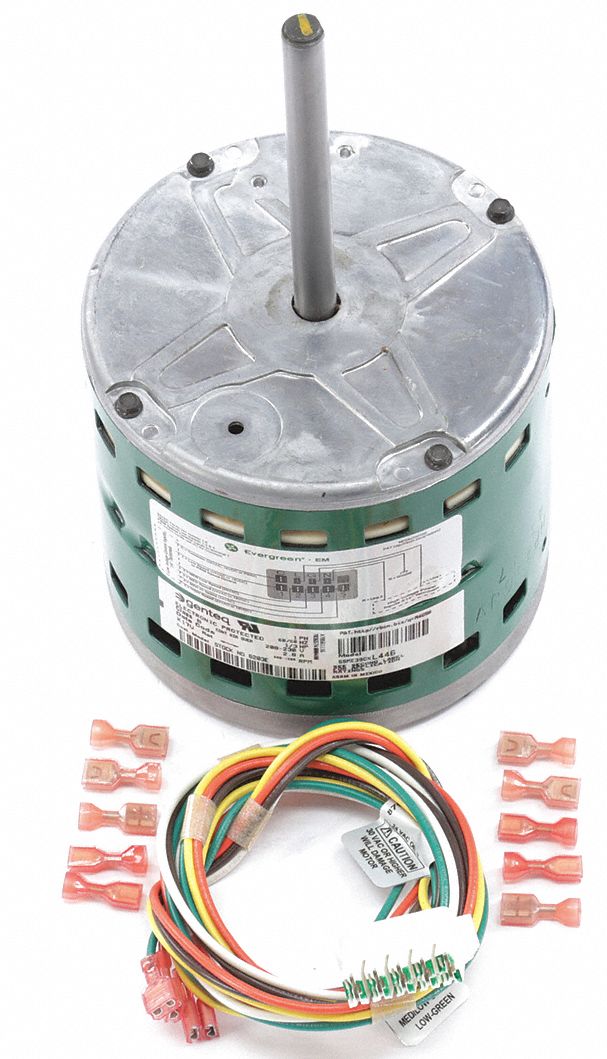

ECM Direct Drive Blower Motor Single Phase Motor Design ECM 1/3 HP Nameplate RPM 1 075 No of Speeds 5 Voltage 208-230V AC Full Load Amps 2.
08 A 48 Frame Usable @ 208V Yes Usable @ 200V No Motor Thermal Protection None 60 Hz Hz Motor Service Factor 1 Ins.
Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 40 Degrees C Duty Cycle Continuous Lead Length 42 in Motor Enclosure Design Open Air-Over Motor Mounting Type Face Motor Mounting Position Horizontal
