Description

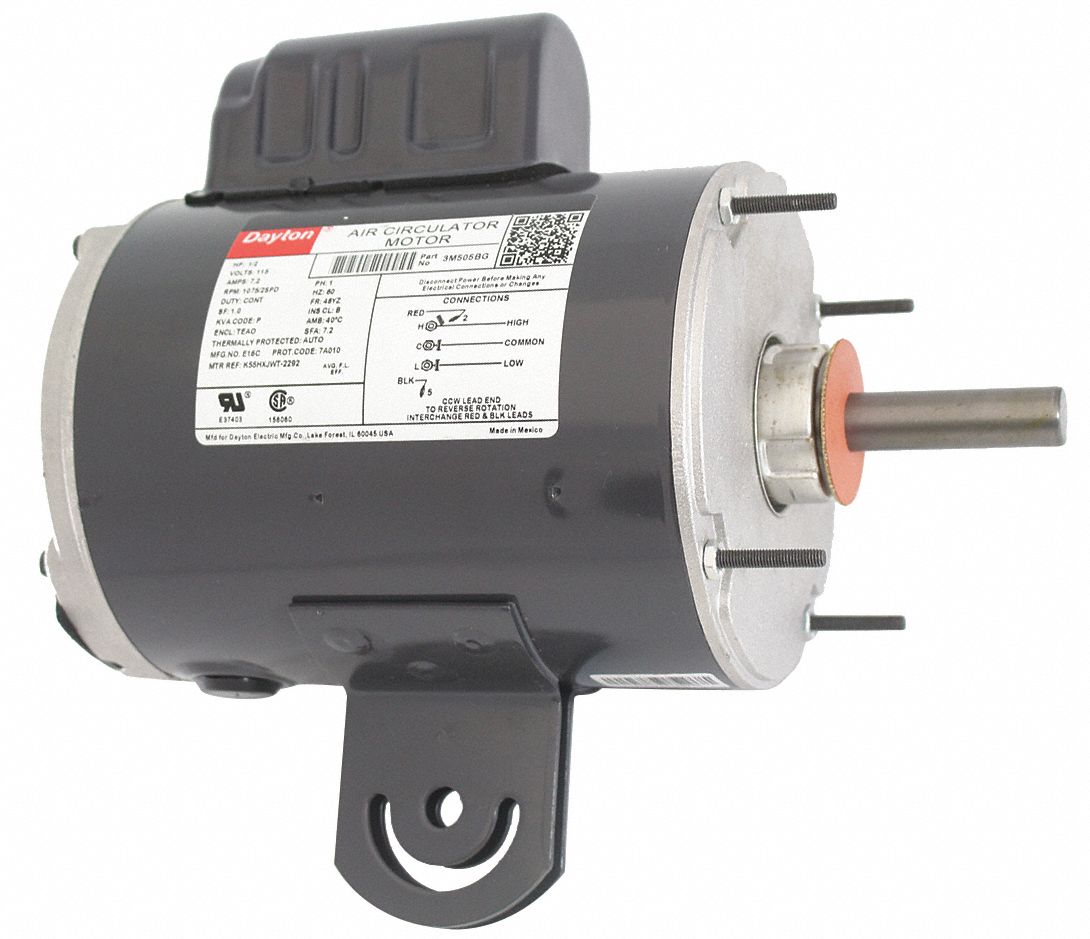

Pedestal Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/2 HP Nameplate RPM 1 075 No of Speeds 2 Voltage 115V AC 7.
2 A Full Load Amps 48YZ Frame 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins.
Class B Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Yoke Motor Mounting Position Horizontal Shaft Length 2 1/2 in Shaft Dia 5/8 in- Alternate Part Numbers- 3M505- 3M505- 3M505
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
3M505
Manufacturer Part Number:
DAYTON
