Description

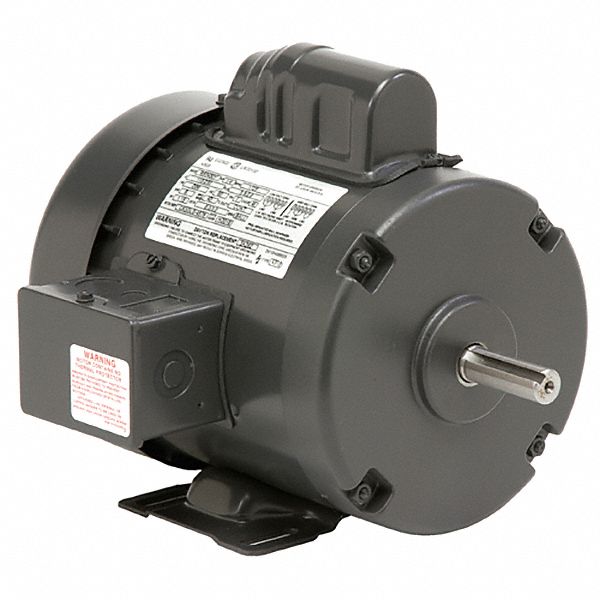

Motor Single Phase Motor Design Capacitor-Start/Run 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 6.
3-5.
6/3.
1-2.
8 A 56 Frame Usable @ 208V No Usable @ 200V Yes Hz 60/50 Hz Motor Service Factor 1.
25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal- Alternate Part Numbers- 56JC77- 6174
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
6174
Manufacturer Part Number:
U.S. MOTORS
