Description

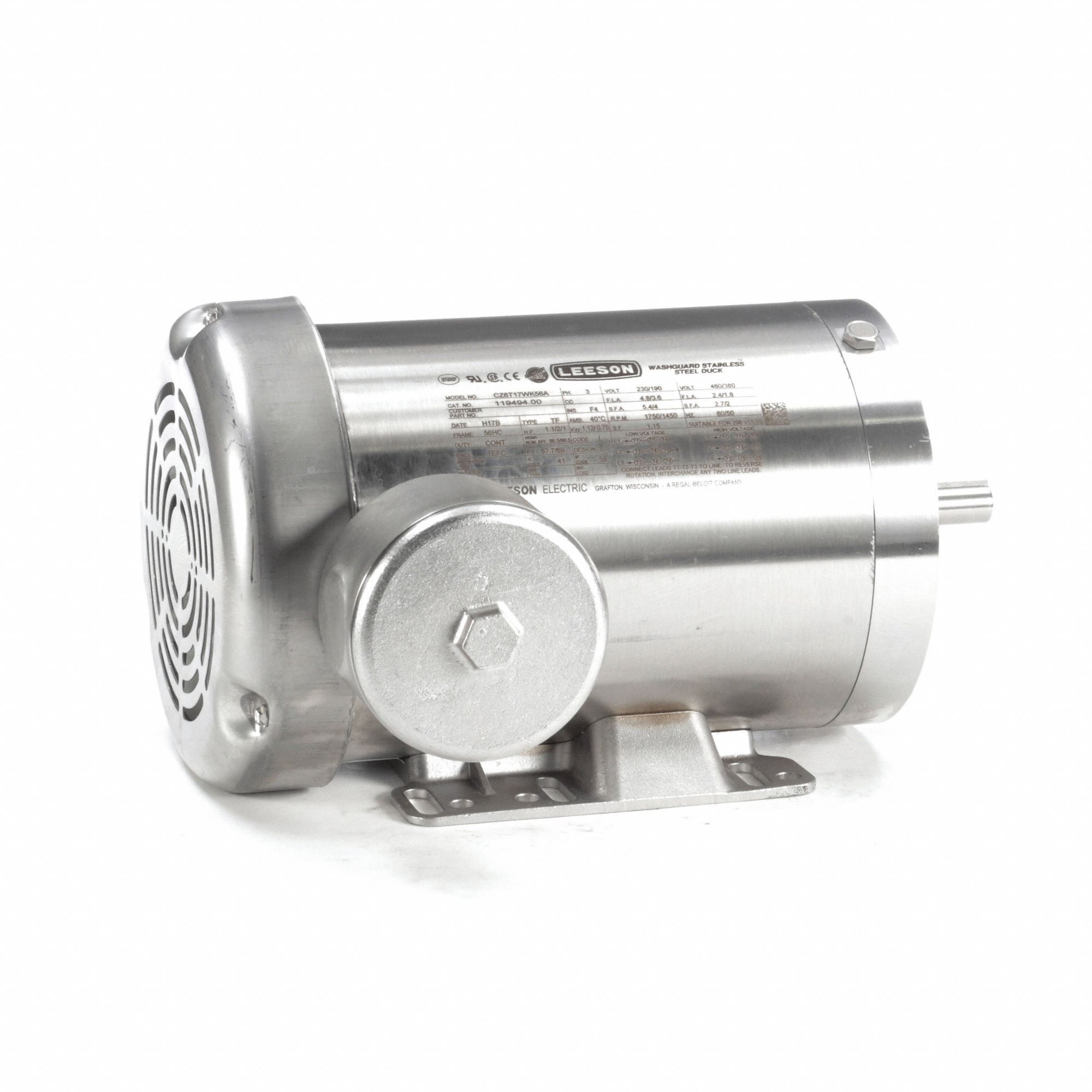

Washdown Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 230/460V AC Full Load Amps 3.
8/1.
90 A 56HC Frame Usable @ 208V No Usable @ 200V No 60/50 Hz Motor Service Factor 1.
2 Motor Thermal Protection Manual Ins.
Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
