Description

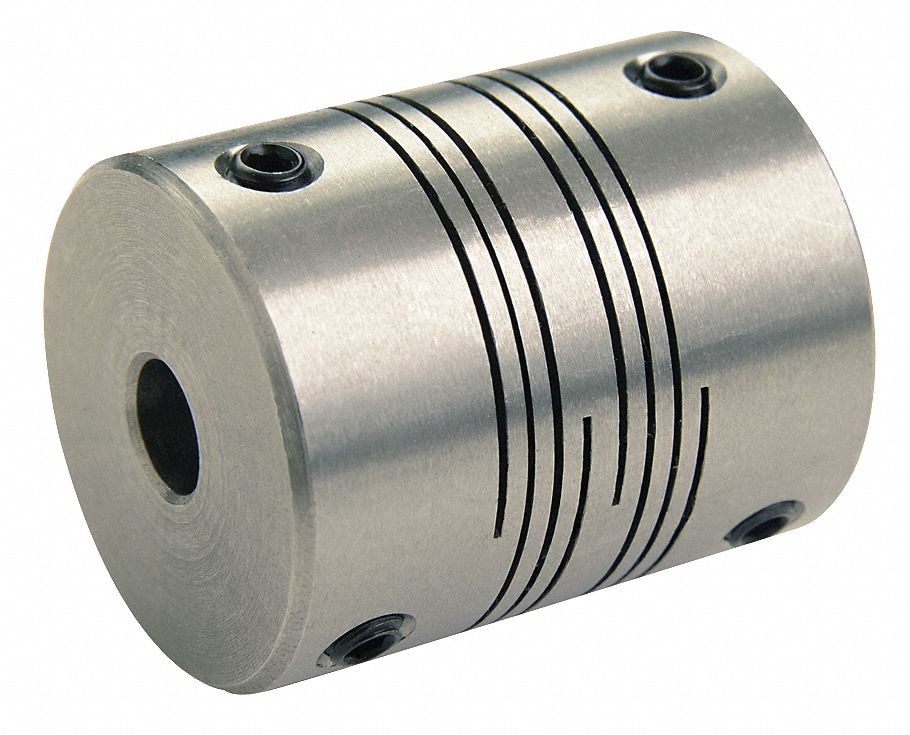

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 8 mm Bore Diameter 2 7 mm Coupling Material Stainless Steel Coupling Outside Diameter 31.
8 mm Maximum Speed 6 000 RPM Maximum Torque 9.
72 N-m Axial Motion 0.
25 mm Overall Length 38.
1 mm Parallel Misalignment 0.
38 mm System of Measurement Metric Different Bore Sizes Yes Torsional Stiffness 3.
03 N-m/Deg Bore Type Round Shaft Locking Type Set Screw Number of Beams 4 Length Through Bore 2 17.
6 mm
Features
Extra Information
Processing Time:
2-3 days
